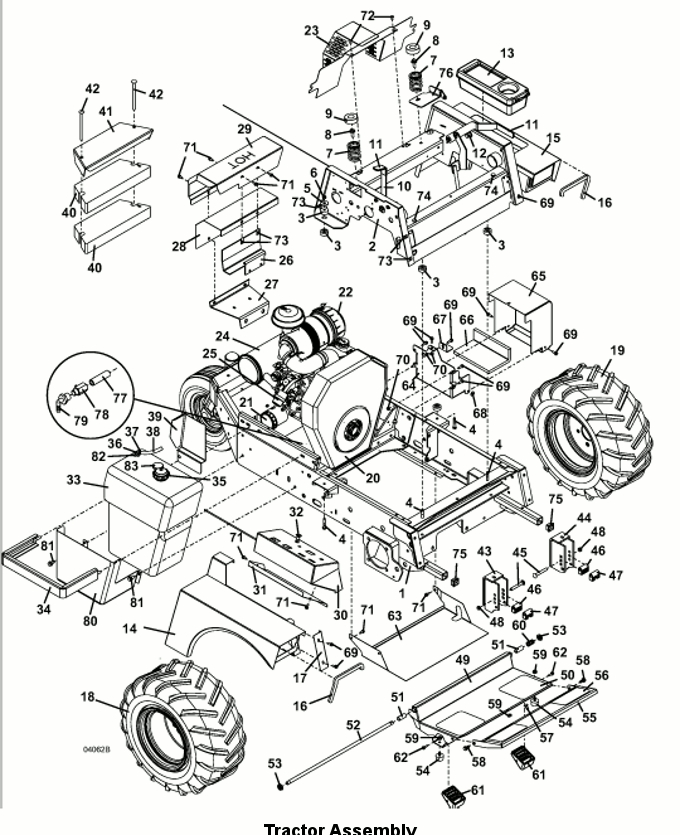

Item # |
Description |
Part Number |
1 |
G2 Air Cooled Lower Frame, Front Portion |
644234 |
2 |
G2 Upper Frame 2005 |
643872 |
3 |
Step Bushing |
257037 |
4 |
Hex Bolt |
243220 |
5 |
Washer |
774020 |
6 |
Nylon Insert Nut |
253450 |
7 |
Compression Spring |
283516 |
8 |
Flange Whiz Bolt |
253203 |
9 |
Seat Spring Cap |
422127 |
10 |
Throttle Assembly |
603821 |
- |
Control Cable Assembly |
323655 |
- |
Throttle Lever Stop |
722009 |
11 |
Handle Grip |
422150 |
12 |
Spacer |
902280 |
- |
Hex Bolt |
243335 |
- |
Washer |
257040 |
13 |
Tool Box |
422040 |
14 |
700/900S right Fender w/Decal |
693210 |
- |
727K Trim Decal -right 06 |
163472 |
15 |
700/900S right Fender w/Decal |
693211 |
- |
727K Trim Decal -left 06 |
163473 |
16 |
Fender Edge Trim - 700/900 |
822635 |
17 |
right Fender Cover Panel |
722062 |
18 |
right Wheel & Bar Tread Tire, 22 x 11 x 10 |
483942 |
- |
Turf Tire, 22 x 10 x 10 |
482473 |
- |
Bar Tread Tire, 22 x 11 x 10 |
482483 |
- |
5 Bolt Wheel, 10 x 8.5 |
483420 |
- |
Wheel & Turf Tire, 22 x 10 x 10 |
483946 |
19 |
left Wheel & Bar Tread Tire, 22 x 11 x 10 |
483943 |
- |
Turf Tire, 22 x 10 x 10 |
482473 |
- |
Bar Tread Tire, 22 x 11 x 10 |
482483 |
- |
5 Bolt Wheel, 10 x 8.5 |
483420 |
- |
Wheel & Turf Tire, 22 x 10 x 10 |
483946 |
20 |
27hp Kohler Air-Cooled Engine |
100188 |
21 |
Kohler Oil Filter |
100802 |
22 |
HD Outer Air Filter |
100936 |
- |
HD Inner Air Filter |
100937 |
23 |
Coupler Shield 727K2 |
644363 |
24 |
Kohler Muffler |
101217 |
- |
Kohler Exhaust Gasket |
101041 |
25 |
Kohler Fuel Filter |
101001 |
26 |
Shield Mount Bracket Assembly |
605125 |
27 |
Lower Muffler Bracket |
729270 |
28 |
Inner Panel Shield |
722309 |
29 |
Muffler Shield |
722391 |
30 |
Console w/Decal for Air-Cooled Gas Engine |
693100 |
31 |
Fill Panel - 96 Console |
721152 |
32 |
Mechanical Choke |
142233 |
33 |
Fuel Tank Assembly - 8 Gallon Gas |
604844 |
34 |
Tank Mount - 8 Gallon Gas |
644826 |
35 |
Fuel Cap |
100210 |
36 |
Fuel Tube |
363928 |
37 |
Spring Hose Clamp |
280260 |
38 |
Fuel Hose |
821710 |
39 |
Heat Shield - 8 Gallon Tank |
721181 |
40 |
34 lb. Counterweight |
323933 |
41 |
34 lb. Weight Cover |
729514 |
42 |
Carriage Bolt |
247325 |
43 |
QD 700/900 right Deck Mount |
643092 |
44 |
QD 700/900 left Deck Mount |
643093 |
45 |
Special Carriage Bolt |
247280 |
46 |
Deck Mount Bushing |
282575 |
47 |
Floating Deck Mount Bushing |
282576 |
48 |
Nylon Insert Nut |
253460 |
49 |
Adjustable Foot Platform Assembly - 700/900 |
604346 |
50 |
Foot Rest Tread |
420905 |
51 |
Nylon Bearing |
422615 |
52 |
Foot Platform Pivot Rod - 700 |
780673 |
53 |
Nylon Insert Nut |
253470 |
54 |
Rubber Bumper |
424052 |
55 |
Foot Platform Extension - 700 |
603301 |
56 |
Foot Rest Extension Tread |
420904 |
57 |
Carriage Bolt |
247130 |
58 |
Hex Flange Whiz Bolt |
253192 |
59 |
Whiz Nut |
253035 |
60 |
Compression Spring |
283312 |
61 |
Footrest Isolator Block |
424100 |
62 |
Hex Bolt |
243026 |
63 |
Trash Shield - G2 |
721383 |
64 |
G2 AC W/A Battery Box |
644099 |
65 |
G2 AC W/A Battery Cover |
644162 |
66 |
Battery Tray Pad |
427273 |
67 |
Battery Clamp |
729001 |
68 |
Washer |
257020 |
69 |
Hex Whiz Bolt |
253175 |
70 |
Whiz Nut |
253025 |
71 |
Hex Whiz Bolt |
253173 |
72 |
Truss Whiz Bolt |
253176 |
73 |
Speed Nut |
254431 |
74 |
Rubber Bumper |
424015 |
75 |
Plug - Square - Plastic - 1 inch ID |
422065 |
76 |
Brake Pin Reinforcement |
729230 |
77 |
Nipple |
364518 |
78 |
Valve - Oil Drain |
143610 |
79 |
Nylon Fitting |
363855 |
80 |
Tank Shield - 8 Gallon |
723339 |
81 |
Bolt Whiz |
253200 |
82 |
Bushing Fuel Tube |
101875 |
83 |
Gauge - Intank Fuel |
141144 |
- |
Grommet |
424275 |
