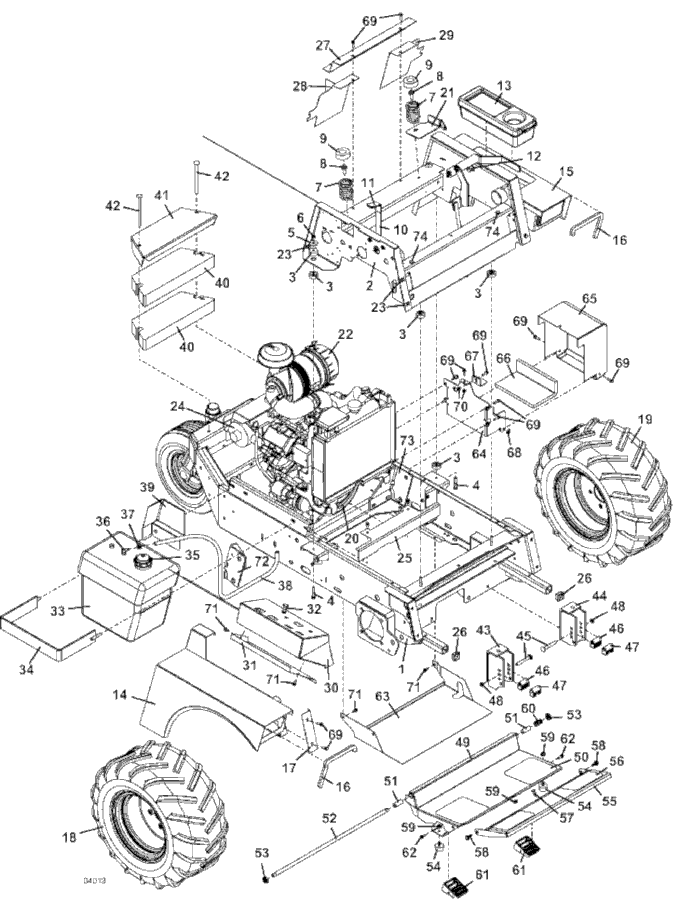

727KW • Tractor Assembly

2004

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

FRAME - LOWER - AC FRNT PRT G2

644234

2

FRAME - UPPER G2

643871

3

STEP BUSHING

257037

4

HEX BOLT

243220

5

WASHER

774020

6

NUT INSERT NYLON

253450

7

SPRING - COMPRESSION

283516

8

BOLT WHIZ FLANGE

253203

9

CAP - SEAT SPRING

422127

10

THROTTLE ASSY

603821

-

CONTROL CABLE ASSY

323655

-

STOP - THROTTLE LEVER

722009

11

GRIP HANDLE

422150

12

SPACER

902280

-

HEX BOLT

243330

-

WASHER

257040

13

TOOL BOX

422040

14

FENDER W/DECAL 700/900S RT

693210

-

Right Trim Decal 727KW

163196

15

FENDER W/DECAL 700/900S LT

693211

-

Left Trim Decal 727KW

163197

16

TRIM - FENDER EDGE 700/900

822635

17

COVER PANEL - FENDER RT

722062

18

WHEEL & TIRE - BAR TREAD 10RT

483942

-

TIRE - TURF - 10

482474

-

TIRE - BAR TREAD 22 X 11 X 10

482483

-

WHEEL - 10 - 5 BOLT

483420

-

WHEEL & TIRE TURF 10

483924

19

WHEEL & TIRE - BAR TREAD 10 LT

483943

-

TIRE - TURF - 10

482474

-

TIRE - BAR TREAD 22 X 11 X 10

482483

-

WHEEL - 10 - 5 BOLT

483420

-

WHEEL & TIRE TURF 10

483924

20

ENGINE 27HP Kawsaki

100187

21

Brake Pin Reinforcement

729230

22

FILTER AIR HD OUTER

100936

-

FILTER AIR INNER HD

100937

23

SPEED NUT

254431

24

Kawasaki Muffler 27HP

101224

-

Kawasaki Muffler Gasket

101038

25

Fuel Line Shield

723224

26

PLUG - SQUARE PLASTIC

422065

27

Flywheel Shield 727KW

722746

28

Right Coupler Shield Mount

722743

29

Left Coupler Shield Mount

722744

30

CONSOLE W/DECAL 325A/725A

693106

31

PANEL - FILL- 96 CONSOLE

721152

32

MECHANICAL CHOKE

142233

33

TANK - FUEL W/DRAW TUBE

603813

34

BRACKET - MOUNTING - FUEL TANK

643144

35

CAP - W/FUEL LEVEL

141125

36

TUBE - FUEL DRAW

101819

37

CLAMP - HOSE SPRING

280260

38

FUEL HOSE

821710

39

SHIELD - HEAT FUEL TANK RT

721123

40

COUNTERWEIGHT - 34 LB

323933

41

WEIGHT COVER - 34 LB

729514

42

CARRIAGE BOLT

247325

43

DECK MOUNT - QD 700/900 RT

643092

44

DECK MOUNT - QD 700/900 LT

643093

45

CARRIAGE BOLT SPECIAL

247280

46

BUSHING - DECK MOUNT

282575

47

BUSHING - DECK MOUNT - FLOATING

282576

48

NUT - INSERT - NYLON

253460

49

FOOT PLATFORM ASSEMBLY - ADJ 700/900

604346

50

TREAD - FOOT REST

420905

51

NYLON BEARING

422615

52

PIVOT ROD - FOOT PLATFORM 700

780673

53

NUT INSERT NYLON

253470

54

RUBBER BUMPER

424052

55

EXTENSION - 700 FOOT PLATFORM

603301

56

TREAD - FOOT REST EXT

420904

57

CARRIAGE BOLT

247130

58

BOLT WHIZ HEX FLANGE

253192

59

NUT WHIZ

253035

60

SPRING COMPRESSION

283312

61

ISOLATOR BLOCK - FOOTREST

424100

62

HEX BOLT

243026

63

TRASH SHIELD G2

721383

64

BATTERY BOX G2 AC W/A

644099

65

COVER BATTERY AC W/A

644162

66

PAD - BATTERY TRAY

427273

67

CLAMP - BATTERY 700 G2

729001

68

WASHER

257020

-

Nut w/ Nylon Insert

253440

69

BOLT WHIZ HEX

253175

70

NUT WHIZ

253025

71

BOLT WHIZ HEX

253173

72

GUSSET - ROPS RT

726131

73

GUSSET - ROPS LT

726132

74

RUBBER BUMPER

424015

75

727 Decal Set with Side Console

604203

Return to 727KW Index Return to Top
