Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

729BT6 • Console

2015

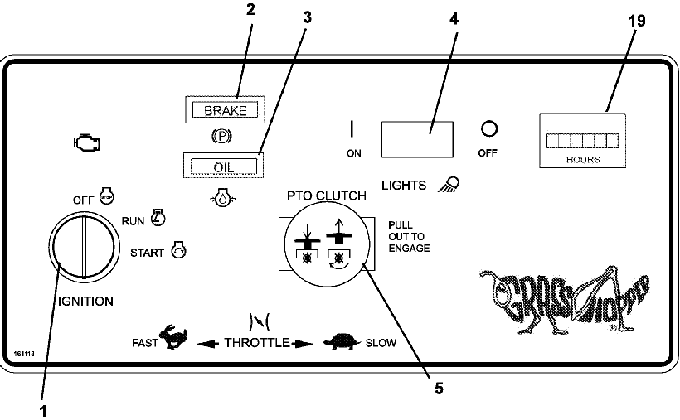

Console

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Key Switch - BS/Kohler

183806

-

Nut

254498

2

Brake Indicator Light

182326

3

Oil Indicator Light

182327

4

Rocker Switch

184179

5

Push/Pull Switch

183925

19

Snap-In Hour Meter

141551

20

Console Decal

161118
