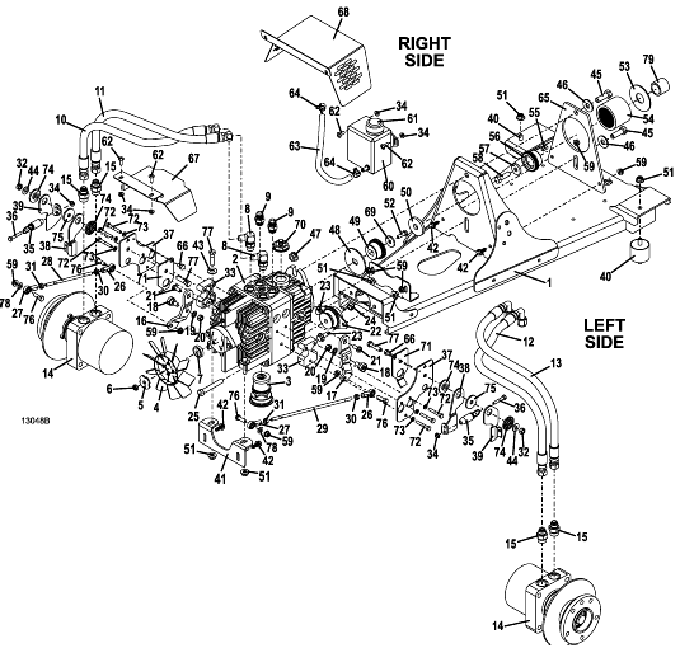

Item # |
Description |
Part Number |
1 |
Drive Train Mount 700T Briggs |
644876 |
2 |
Tandem w/Opposed Trunnions |
391471 |
3 |
Tandem Transmission Filter |
130505 |
4 |
8.3" T6 Fan |
130434 |
5 |
Fan Retainer Washer |
130432 |
6 |
Nylon Insert Nut |
253461 |
7 |
Fan Hub |
130433 |
8 |
Adapter O-Ring |
360061 |
9 |
Adapter Fitting |
360064 |
10 |
Hose Assembly |
424383 |
11 |
Hose Assembly |
424384 |
12 |
Hose Assembly |
424385 |
13 |
Hose Assembly |
424386 |
14 |
T6 Wheel Motor w/Hub |
603614 |
15 |
Adapter O-Ring |
360063 |
16 |
Rt Neutral Return Arm |
726162 |
17 |
Lt Neutral Return Arm |
726163 |
18 |
Opposed Roller Assembly |
603735 |
19 |
External Star Washer |
257410 |
20 |
Nut |
254450 |
21 |
Hex Bolt Fl w/Ser |
271021 |
22 |
Flange Vibration Isolator |
424070 |
23 |
Whiz Flange Bolt |
253203 |
24 |
Nylon Insert Nut |
253465 |
25 |
Hex Bolt |
243475 |
26 |
Rt Rod Female End |
265650 |
27 |
Lt Rod Female End |
265651 |
28 |
Steering Rod |
780150 |
29 |
Steering Rod |
780171 |
30 |
Nut |
254441 |
31 |
Nut |
254444 |
32 |
Lock Nut |
253890 |
33 |
Return Spacer |
422049 |
34 |
Whiz Nut |
253025 |
35 |
Extension Spring |
283823 |
36 |
Hex Bolt |
243035 |
37 |
Neutral Return Mount |
766037 |
38 |
Neutral Return Arm |
766043 |
39 |
Neutral Return Arm |
766044 |
40 |
Vibration Isolator |
424073 |
41 |
Front Pump Mount |
725522 |
42 |
Hex Flange Whiz Bolt |
253192 |
43 |
Washer |
257040 |
44 |
Washer |
257030 |
45 |
Hex Bolt |
243570 |
46 |
Washer |
257060 |
47 |
Nut Whiz |
253066 |
48 |
DD Washer |
774175 |
49 |
Coupler Hub |
388577 |
50 |
Coupling Stabilizer |
424150 |
51 |
Whiz Nut |
253043 |
52 |
Hex Bolt |
243206 |
53 |
Washer |
774184 |
54 |
Nylon Coupler Sleeve |
388560 |
55 |
Square Key |
281580 |
56 |
Coupler Hub |
388579 |
57 |
Washer |
775124 |
58 |
Hex Bolt |
243456 |
59 |
Whiz Nut |
253035 |
60 |
Oil Expansion Tank |
421981 |
61 |
Vented Cap with Gasket |
421991 |
62 |
Phillips Head Whiz Truss Bolt |
253179 |
63 |
Hydro Expansion Hose |
821709 |
64 |
Spring Hose Clamp |
280261 |
65 |
Tandem Pump Mount Spacer |
775123 |
66 |
Hex Bolt |
243186 |
67 |
700T Fan Shroud |
722976 |
68 |
700BT Shield Coupler w/Decal |
693785 |
69 |
Washer |
774020 |
70 |
T2 Expansion Tank Adapter |
130510 |
71 |
Adjustment Plate |
766038 |
72 |
Hex Bolt |
243038 |
73 |
Lock Washer |
257392 |
74 |
Neutral Return Pivot Bearing |
822304 |
75 |
Washer |
774292 |
76 |
Hex Bolt |
243205 |
77 |
Hex Bolt |
243340 |
78 |
Washer |
257032 |
79 |
Spacer |
902592 |
