Genuine OEM Grasshopper® Mower Parts Diagrams

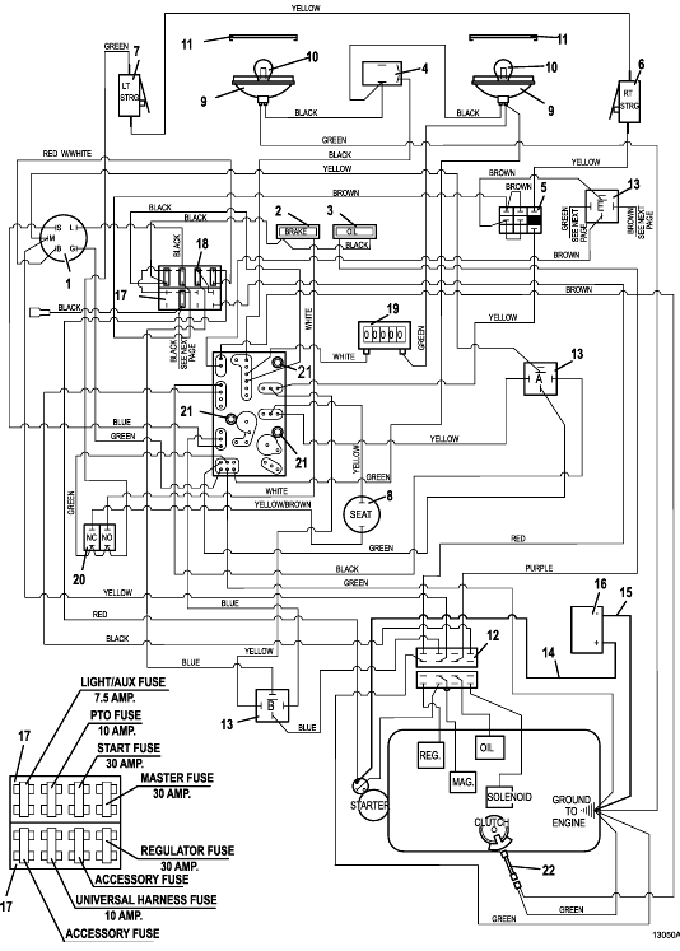

729BT6 • Wiring & Lights
2016
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Key Switch B & S/Kohler |
183806 |
- |
Nut |
254498 |
2 |
Brake Light Indicator |
182326 |
3 |
Oil Indicator Light |
182327 |
4 |
Rocker Switch |
184179 |
5 |
Switch Push/Pull |
183925 |
6 |
Lever Switch |
183860 |
- |
Steering Switch Mount - right |
720160 |
8 |
Lever Switch |
183860 |
- |
Steering Switch Mount - left |
720161 |
8 |
Twist-in Seat Switch |
183871 |
9 |
Flood Worklamp |
182253 |
10 |
Worklamp Light Bulb |
182005 |
11 |
Snap Mount Worklamp Bezel |
182251 |
12 |
8-Way Connector Mount |
184940 |
13 |
12V DC Relay w/Diode |
184266 |
14 |
Battery Cable 14" Red |
180313 |
- |
Starter Terminal Boot |
425219 |
- |
Battery Terminal Boot |
425223 |
15 |
Battery Cable 16" Black |
180276 |
16 |
12 Volt Sidepost Battery Wet |
180130 |
- |
12 Volt Sidepost Battery Dry |
180131 |
- |
Hex Bolt |
243309 |
17 |
Fuse Block |
181722 |
- |
1 Wire Fuse Clip |
184458 |
- |
2 Wire Fuse Clip |
184460 |
- |
Double Fuse Clip |
184472 |
18 |
30 amp Auto ATC Fuse |
181470 |
- |
7.5 amp Auto ATC Fuse |
181460 |
- |
10 amp Auto ATC Fuse |
181462 |
19 |
Snap In Hour Meter |
141551 |
20 |
Brake Interlock Switch |
183894 |
21 |
PC Board Support Spacer |
423690 |
22 |
Pigtail Cable Assembly |
388840 |
23 |
Wiring Assembly |
605903 |
Return to 729BT6 Index
