Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

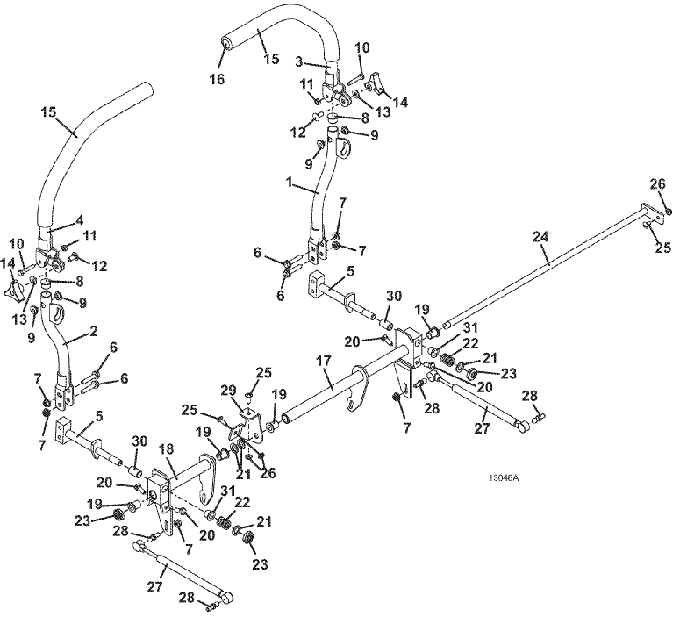

729BT6 • Steering Assembly

2018

Steering Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Lwr Rt Adj Steering Lever

645748

2

Lwr Lt Folding Steering Lever

645749

3

Uppr Rt Adj Steering Lever

645744

4

700/900 Uppr Lt Steering Lever

645745

5

Adj Steering Lever Mount

643926

6

Whiz Hex Flange Bolt

253195

7

Whiz Nut

253035

8

Nylon Plug

422063

9

Step Bushing

422508

10

Hex Bolt

243035

11

Lock Nut

253850

12

Carriage Bolt

247130

13

Flat Washer

257019

14

Thumb Screw

252858

15

Handle Grip

422179

16

.75 ID Vinyl Cap

422095

17

Rt Pivot w/Stop & Bearings

604608

18

Lt Pivot w/Stop & Bearings

604609

19

Sleeve Bearing w/Flange

422559

20

Hex Bolt

243197

21

Washer

257063

22

Compression Spring

283324

23

Nut w/Nylon Insert

253470

24

700T Steering Pivot

644601

25

Phillips Truss Whiz Bolt

253179

26

Whiz Nut

253025

27

Reverse Damper w/Ball Socket

285032

28

Ball Stud

265680

29

Steering Rod Support

729700

30

Sleeve Bearing

422557

31

Sleeve Bearing w/Flange

422556
