Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

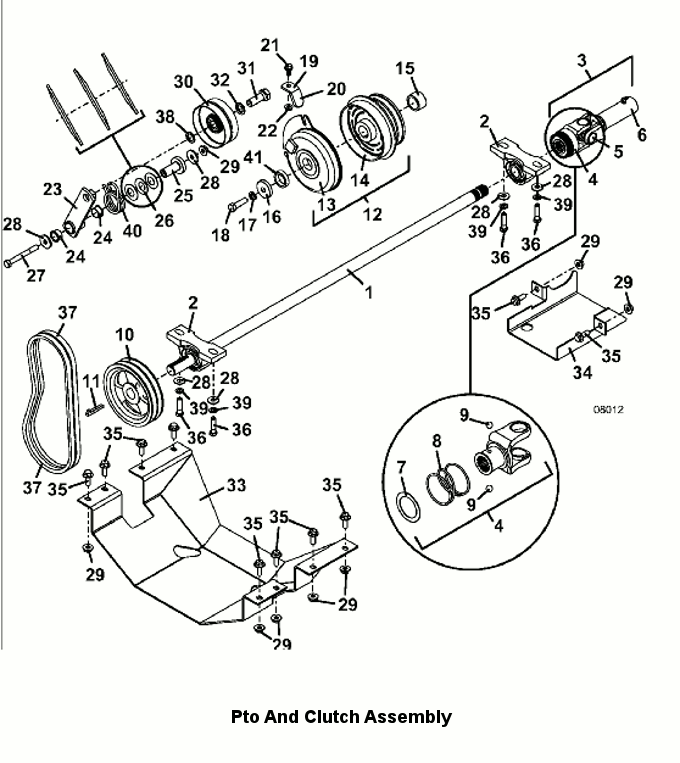

729BT6 • PTO Shaft & Clutch Assembly

2008

PTO Shaft and Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Power Shaft 38.5

393761

2

Pillowblock SC Bearing

122044

3

UN Half Sleeve

398914

4

QD Splined Yoke

401019

5

Cross & Bearing

121010

6

Yoke with Sleeve

401017

7

External Retainer

263660

8

Compression Spring

283525

9

Steel Ball

300014

10

Sheave

415650

11

Gib Square Key

281588

12

1.125 Plg Hdbrg S Brake

388771

15

Spacer - Clutch

902591

16

Washer

883803

17

Lock Washer

257422

18

Hex Bolt

243456

19

Clutch Anti-Rotation Bracket

732407

20

Clutch Bracket Cover

422088

21

Hex Flange Whiz Bolt

253192

22

Whiz Nut

253035

23

Idler Arm Assembly

824474

24

Oilite Bearing

121756

25

PM Pedestal

833201

26

Spring Washer

257319

27

Hex Bolt

243375

28

Washer

774020

29

Whiz Nut

253043

30

Idler

393205

31

Hex Bolt

243805

32

Lock Washer

257452

33

700T Sheave Guard

644422

34

PTO Shaft Shield

729287

35

Whiz Flange Bolt

253203

36

Hex Bolt

243340

37

Belt

381914

38

Washer

257088

39

Lock Washer

257412

40

Torsion Spring

284427

41

Clutch Spacer use 830420

830420
