Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

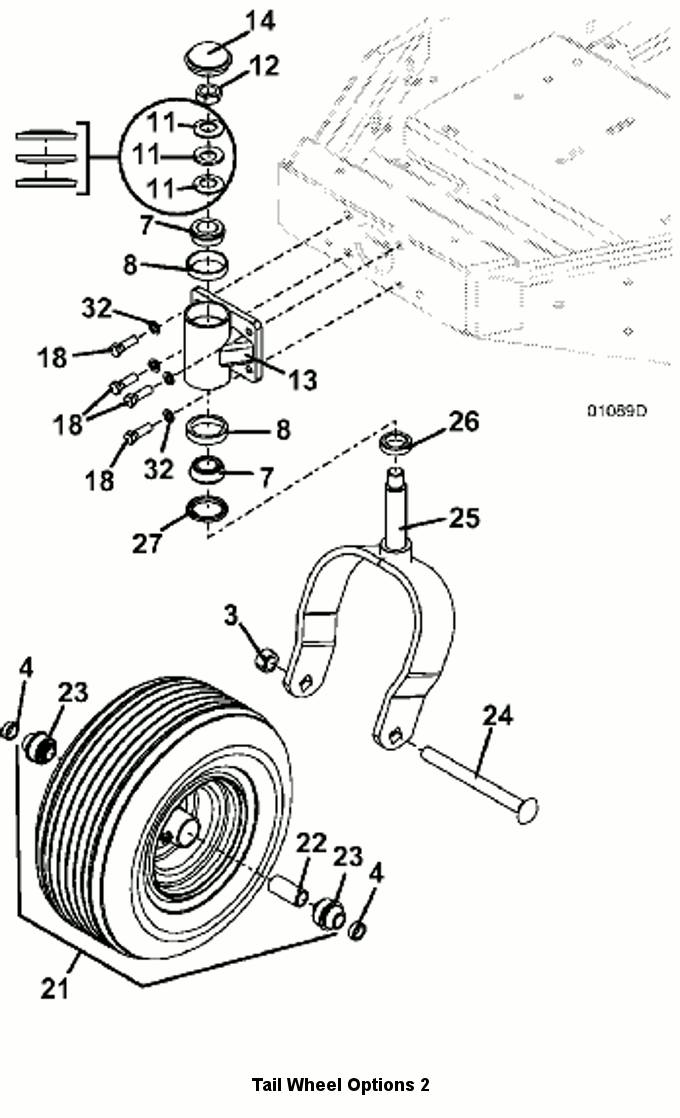

729BT6 • Tail Wheel Options 2

2011

Tail Wheel Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

3

Lock Nut

253970

4

Axle Spacer

902422

7

Taper Bearing

122522

8

Bearing Cup

123522

11

Spring Washer

257320

12

Jam Nylon-Top Lock Nut

254505

13

RR Fork Pivot Housing Assembly

604596

14

Dust Cap

481434

18

GR8 Hex Bolt

243334

21

Wheel Assy - Rear w/BRG-13x6.5x6

603975

-

Ribbed Tire

482355

-

Wheel without Tire - tan

483306

22

Center Rear Axle Spacer

902429

23

Ball Bearing

120048

24

Carriage Bolt

247725

25

Tail Wheel Tapered Fork BRG

645221

26

Spacer

282615

27

Seal

125855

32

Lock Washer

257412
