Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

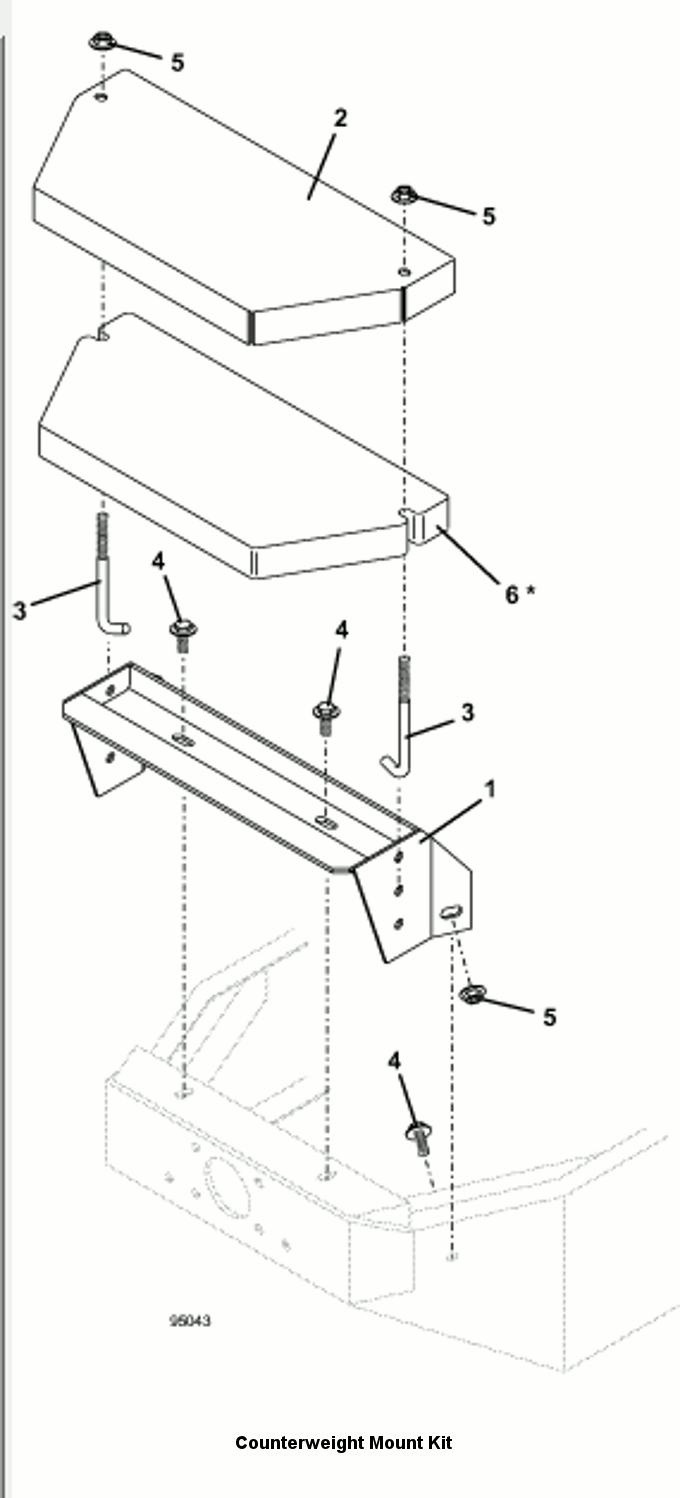

735BT6 • Counterweight Mount Kit

2010

Counterweight Mount Kit

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Weight Mount

643915

2

50 lb. Weight Cover

729691

3

Hook Bolt

240151

4

Flange Whiz Bolt

253203

5

Whiz Nut

253043

6

50 lb. Counterweight

503218

7

Counterweight Mount Kit

503220

return to 735BT6 index return to top of page
