Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

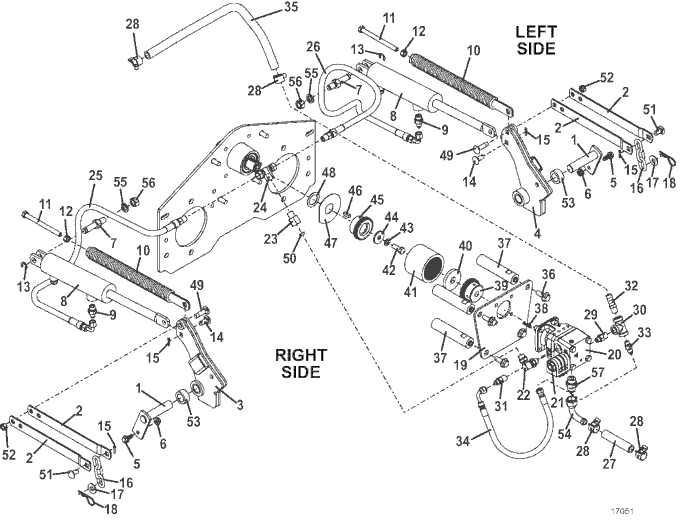

900D 1.3L • Hydraulic Lift Assembly

2018

Hyadraulic Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Traction Kit Pin

644638

2

Deck Lift Strap 600 W/SL

732410

3

Right Rocker W/O Extension

603742

-

Oilite Bearing

121766

4

Left Rocker W/O Extension

603743

-

Oilite Bearing

121766

5

Hex Flange Whiz Bolt .312-18 x .75

253192

6

Whiz Nut

253035

7

Cylinder Mount Pin w/Groove

887119

8

Hydraulic Cylinder

290021

-

Hydraulic Lift Cylinder HD Seal Kit

290096

9

O Ring Adapter

360052

10

Spring & Plug Nut Assembly

604839

11

Hex Bolt

243395

12

Nut

254450

13

External Retainer

263500

14

Clevis Pin

261339

15

Cotter Pin

260648

16

3 Link Lift Chain

820317

17

Washer

257040

18

Hair Pin

260523

19

Pump Mount Plate

775007

20

Hydraulic Pump w/Solenoid Valve - CCW

290075

20

Seal

125165

21

Hydraulic Lift Valve Solenoid

144951

22

90 Degree O Ring Adapter

360055

23

O Ring Adapter

360045

24

Swivel Tee Adapter

360005

25

Right Hose Assembly

424310

26

Left Hose Assembly

424553

27

Hydraulic Hose

821781

28

Spring Hose Clamp

280266

29

O Ring Adapter

360040

30

Tee

366810

31

O Ring Adapter

360050

32

Brass Hose Insert

360259

33

Adapter Fitting

360012

34

Hose Assembly

424302

35

Hydraulic Hose

821810

36

Flanged Whiz Bolt

253203

37

Pump Plate Pedestal

882098

38

Square Key

281540

39

Coupler Hub

388576

40

Coupling Stabilizer

424150

41

Nylon Coupler Sleeve

388560

42

Hex Bolt

243331

43

Lock Washer

257412

44

Washer

774020

45

Lower Flex Coupler

831039

46

Square Key

281580

47

Washer

770045

48

Washer

257106

49

Carriage Bolt .375 x 1.375

247254

50

Flow Restrictor

780507

51

Clevis Pin

261336

52

Lock Nut

253890

53

900 Traction Kit Spacer

902302

54

Fitting

363857

55

Lock Washer

257432

56

Nut

254470

57

Steel O Ring Boss Fitting

363832

-

O-Ring

126527

-

O-Ring

126535
