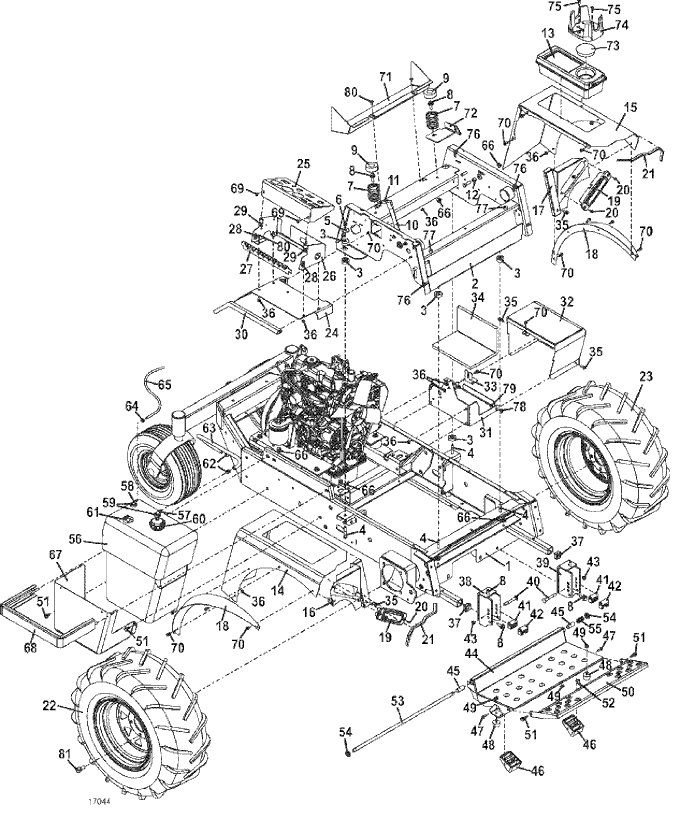

1

900 1.3L Lower Frame

644288

2

Upper Frame

645370

3

Step Bushing

257037

4

Hex Bolt

243220

5

Washer

774020

6

Nylon Insert Nut

253450

7

Compression Spring

283516

8

Flange Whiz Bolt

253203

9

Seat Spring Cap

422127

10

Throttle Assembly

603859

-

Throttle Control Cable Assembly

323675

-

Heavy Duty Throttle Stop

722736

11

Handle Grip

422150

12

Spacer

902280

-

Hex Bolt

243335

-

Washer

257040

13

Tool Box

422040

14

Right Fender w/ Decal

693218

15

Left Fender w/ Decal

693219

16

Right Light Panel

645243

17

Left Light Panel

645244

18

Tapered Flare

645000

19

LED Mini Light Bar Flood Worklamp Mount

182262

20

Hex Whiz Bolt

253164

-

Whiz Nut

253020

21

Trim

822632

22

Right Wheel & Tire Bar Tread

483968

23

Left Wheel & Tire Bar Tread

483969

-

Turf Tire

482486

-

Bar Tread Tire

482487

-

Wheel Only

483440

-

Wheel & Tire Turf Tread

483965

-

Right Wheel & Tire Bar Tread

483968

24

Console Mount

645053

25

900 1.3L Console Panel

721391

26

Console Frame Mount

722869

27

Relay Mount

773102

28

Grommet

424216

29

Plastic Retainer Nut

254432

30

Console Mount Seal

822501

31

Battery Box w/o Draw Latch

644163

32

Battery Box Lid w/o Latch

644478

33

Battery Hold Down Bracket

754135

34

Battery Tray Pad

427278

35

Hex Whiz Bolt

253175

36

Whiz Nut

253025

37

Square Platic Plug 1"

422065

38

Right QD Deck Mount

643092

39

Left QD Deck Mount

643093

40

Special Carriage Bolt

247280

41

Deck Mount Bushing

282575

42

Floating Deck Mount Bushing

282576

43

8 Gallon Diesel Fuel Tank Assembly

604846

44

Tilt Decks Footrest

644225

45

Nylon Bearing

422615

46

Footrest Isolator Block

424100

47

Hex Bolt

243026

48

Rubber Bumper

424052

49

Whiz Nut

253035

50

Foot Platform Extension

643304

51

Hex Flange Whiz Bolt

253192

52

Carriage Bolt

247130

53

Foot Platform Pivot Rod

780673

54

Nylon Insert Nut

253470

55

Hex Bolt

243026

56

8 Gallon Diesel Tank Assembly (Includes 57-61)

604847

57

Fuel Tube

363930

58

Fuel Tube

363924

59

Fuel Tube Bushing

101875

60

Screw-on Fuel Cap

100211

61

Electric Fuel Sender

141236

-

Electric Fuel Sender Grommet

424274

62

Spring Clamp Hose

280261

63

Fuel Line Hose

821716

64

Spring Hose Clamp

280257

65

Fuel Return Hose

821741

66

Whiz Nut

253043

67

8 Gallon Tank Shield

723339

68

8 Gallon Tank Mount

644826

69

Bolt

253180

70

Hex Whiz Bolt

253173

71

I-Coupler Shield

722765

72

Brake Pin Reinforcement

729230

73

Cup Hole Plug 3.252 Inch Diameter

422066

74

Cup Holder

150225

75

Nylon Screw Cap

259030

-

Nut

254436

76

Speed Nut

254431

77

Rubber Bumper

424015

78

Washer

257020

79

Nylon Insert Nut

253440

80

Truss Whiz Bolt

253176

81

Lug Bolt

248565

82

900D 1.3L Decal Set

605433
