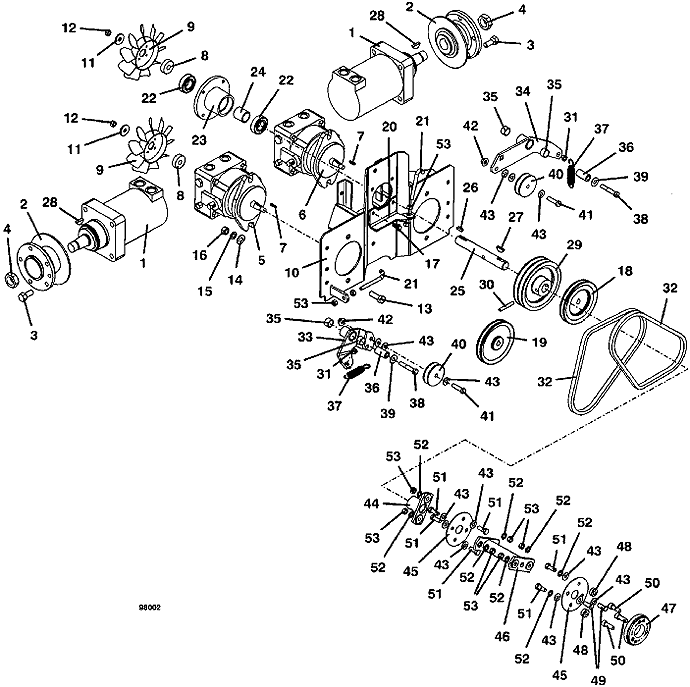

1

WHEEL MOTOR

391480

2

6.0 HUB and ROTOR ASSEMBLY

604439

3

LUG BOLT .500 X .875

248565

4

NUT 1-20

254522

5

left HYDRO PUMP

391452

-

left 928D2 TS TRANSMISSION ASSEMBLY

604879

6

right HYDRO PUMP

391453

-

right 928D2 TS TRANSMISSION ASSEMBLY

604878

7

RECTANGLE KEY

281562

8

10A FAN HUB MOUNT

885123

-

FAN HUB MOUNT

423685

9

clockwise 7" NYLON FAN

320857

10

900 DRIVE MOUNT

644630

11

WASHER

774020

12

NUT

254452

13

HEX BOLT

243570

14

WASHER

257062

15

LOCK WASHER

257432

16

NUT

254470

17

WHIZ HEX FLANGE BOLT

253192

18

SHEAVE

415021

-

SHEAVE

415020

19

SHEAVE

415022

-

SHEAVE

415020

20

928 SPRING BRACKET

725028

21

IDLER ADJUSTMENT J BOLT

730391

22

25MM BALL BEARING

110081

23

VAC FAN SPINDLE HOUSING

320522

24

DRIVE BEARING SPACER

903650

25

25MM SPLIT DRIVE SHAFT

882845

26

SQUARE KEY

281580

27

WOODRUFF KEY

281845

28

WOODRUFF KEY

281860

29

SHEAVE

415035

30

ROLL PIN

261061

31

NYLON BEARING

422520

32

BELT

381540

33

G2 LOWER IDLER ARM ASSEMBLY

604448

34

G2 UPPER IDLER ARM ASSEMBLY

604450

35

OILITE BEARING

121758

36

PIVOT SHAFT BEARING

881105

37

EXTENSION SPRING with SWIVEL

283819

38

HEX BOLT

243350

39

WASHER

257040

40

IDLER

604449

41

HEX BOLT

243340

42

WHIZ NUT

253043

43

WASHER

257030

44

FLEX COUPLING HUB

824550

45

FLEX COUPLING DISC

821530

46

COUPLING CONNECTOR

643222

47

COUPLING ADAPTER

885285

48

COUPLING SPACER

902318

49

HEX BOLT

830040

50

HEX BOLT

271120

51

HEX BOLT

243330

52

LOCK WASHER

257412

53

NUT

254450
