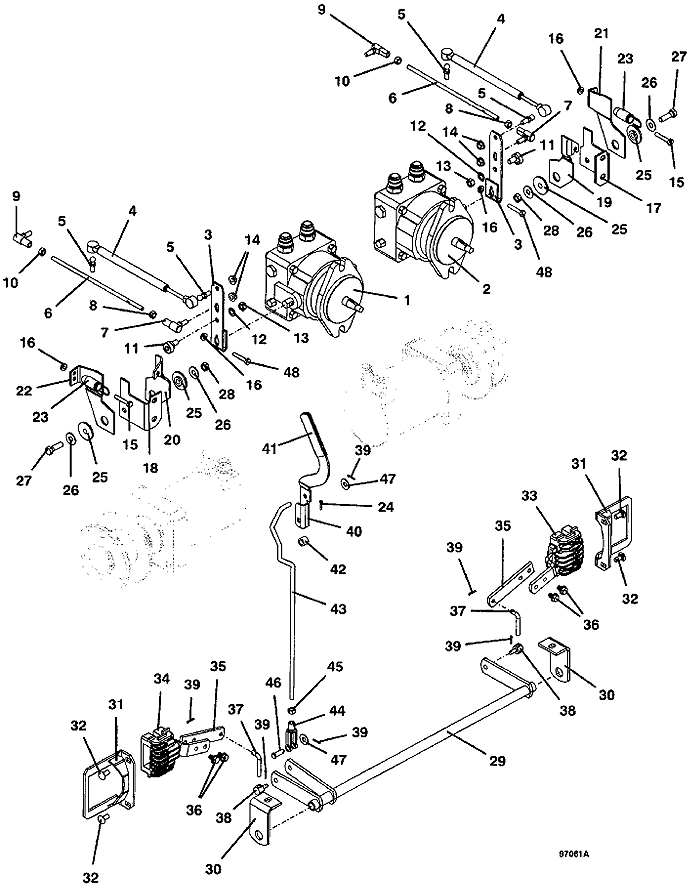

1

left HYDRO PUMP

391452

-

left 928D2 TS TRANSMISSION ASSEMBLY

604879

2

right HYDRO PUMP

391453

-

right 928D2 TS TRANSMISSION ASSEMBLY

604878

3

right PUMP CONTROL ARM

725338

4

DAMPER

285031

5

BALL STUD

265680

6

STEERING LINKAGE PUMP ROD

780164

7

lefthand thread BALL JOINT

265616

8

NUT

254444

9

righthand thread BALL JOINT

265615

10

NUT

254441

11

ECCENTRIC ROLLER ASSEMBLY

603726

12

STAR EXTERNAL WASHER

257410

13

NUT

254450

14

WHIZ NUT

253038

15

HEX BOLT

243035

16

WHIZ NUT

253025

17

right NEUTRAL RETURN MOUNT

729225

18

left NEUTRAL RETURN MOUNT

729226

19

right NEUTRAL RETURN ARM

729138

20

left NEUTRAL RETURN ARM

729139

21

right front NEUTRAL RETURN ARM

729136

22

left front NEUTRAL RETURN ARM

729137

23

EXTENSION SPRING

283823

24

COTTER PIN

260648

25

NEUTRAL RETURN PIVOT BEARING

822304

26

WASHER

257040

27

HEX BOLT

243335

28

LOCK NUT

253890

29

900D G2 LINKAGE ROD

644521

30

BRAKE PIVOT MOUNT BRACKET

732610

31

M1/G2 CALIPER MOUNT

644121

32

CARRIAGE BOLT

247130

33

clockwise BRAKE ASSEMBLY

481108

34

counter-clockwise BRAKE ASSEMBLY

481109

35

900D G2 BRAKE LINKAGE

782873

36

WHIZ BOLT

253189

37

928 BRAKE LINKAGE ROD

730155

38

BRAKE LINKAGE PIN

880924

39

COTTER PIN

260624

40

SPLIT DRIVE BRAKE LEVER

754045

41

HANDLE GRIP

422150

42

BRAKE LEVER SPACER

423705

43

700 BRAKE LINKAGE ROD

730361

44

CLEVIS YOKE

265537

45

NUT

254441

46

CLEVIS PIN

261284

47

WASHER

257030

48

HEX WHIZ BOLT

253182
