Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

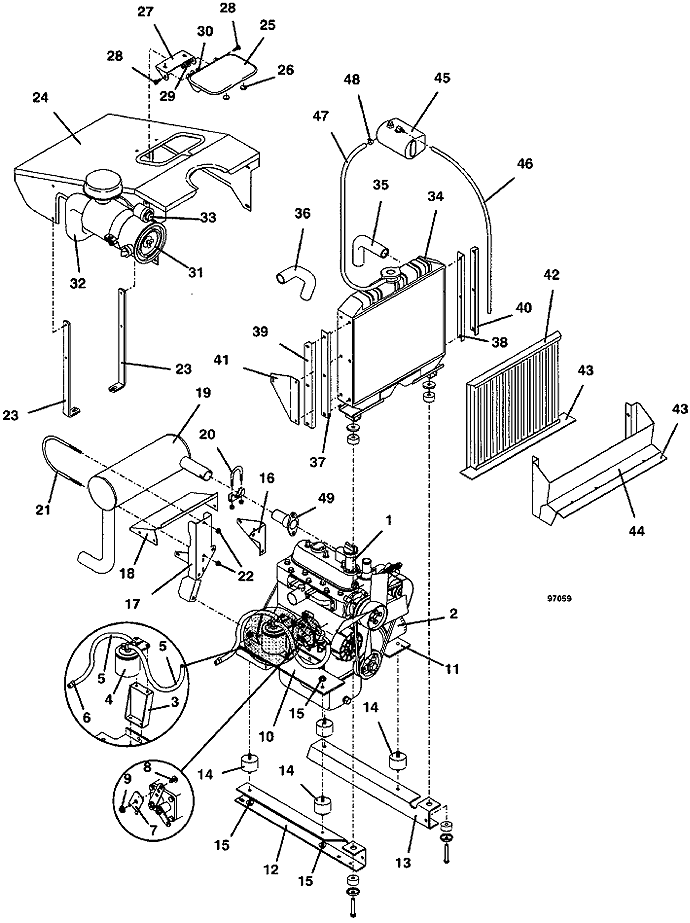

928D2 • Engine Assembly

1999

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

KUBOTA DIESEL ENGINE

100181

2

KUBOTA OIL FILTER

100805

3

400/900 FUEL FILTER MOUNT

644220

4

KUBOTA FUEL FILTER

101004

5

928D FUEL LINE HOSE

821716

6

SCREW TYPE HOSE CLAMP

280270

7

928 LINKAGE EXTENSION

723063

8

TRUSS WHIZ BOLT

253176

9

WHIZ NUT

253025

10

400/900 right ENGINE MOUNT

643028

11

400/900 left ENGINE MOUNT<

643029

12

right ENGINE MOUNT RAIL

725300

13

left ENGINE MOUNT RAIL

725301

14

VIBRATION ISOLATOR

424078

15

WHIZ NUT

253043

16

SHIELD MOUNT BRACKET

729094

17

900 MUFFLER BRACKET

643114

18

CLUTCH SHIELD

722283

19

KUBOTA MUFFLER

101232

20

EXHAUST CLAMP

101356

21

U-BOLT

321250

22

WHIZ NUT

253035

23

HOOD UPRIGHT SUPPORT

732576

24

900 HOOD with DECALS

693302

25

928 HOOD DOOR

643967

26

RUBBER BUMPER

424029

27

928 HOOD BRACKET

724059

28

HEX BOLT

243195

29

SPRING WASHER

284312

30

NYLON INSERT NUT

253450

31

KUBOTA AIR FILTER

100939

32

BREATHER HOSE

424530

33

FILTER MINDER & MOUNT ASSEMBLY

603325

-

FILTER MINDER HOSE

821695

-

BRASS BULK HD FITTING

360090

34

KUBOTA RADIATOR

101615

35

UPPER RADIATOR HOSE

101056

36

LOWER RADIATOR HOSE

101057

37

right RADIATOR GRILLE MOUNT

722114

38

left RADIATOR GRILLE MOUNT

722115

39

right OUTER GRILLE SUPPORT

722058

40

left OUTER SUPPORT GRILLE

722059

41

THROTTLE CABLE CLAMP

723134

42

RADIATOR GRILLE ASSEMBLY

603385

43

GRILLE SEAL

424160

44

INTAKE DUCT with SHIELD

644360

45

EXPANSION TANK

422012

46

CLEAR VENT HOSE

821748

47

HOSE

821749

48

SPRING HOSE CLAMP

280260

49

EXHAUST FLANGE

644237
