Genuine OEM Grasshopper® Mower Parts Diagrams

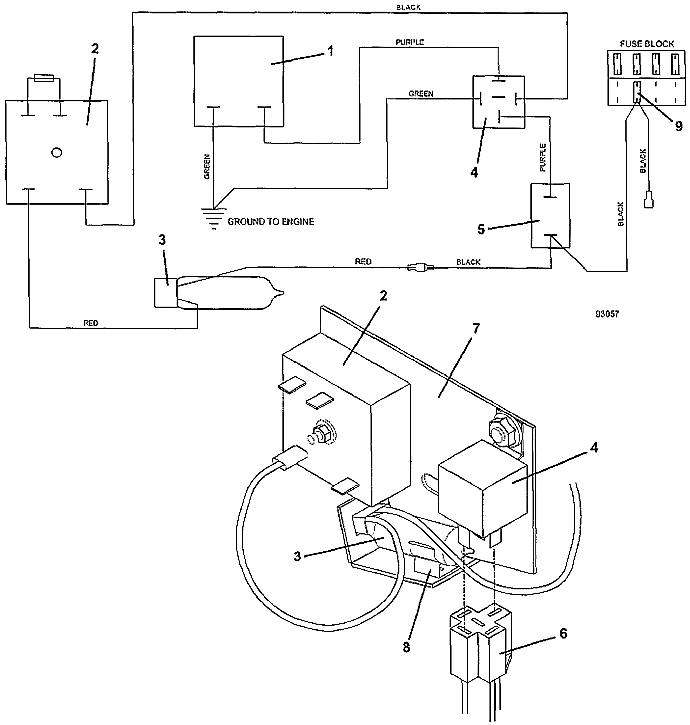

928D2 • Hydraulic Lift Wiring
1999
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
HYDRAULIC SOLENOID VALVE |
144950 |
2 |
DECK LIFT TIMER ASSEMBLY |
604815 |
3 |
MERCURY SWITCH |
183725 |
4 |
12V DC RELAY with MOUNT |
184271 |
- |
TYPE 1 6mm PUSH-ON |
184570 |
- |
.250 FAST-ON TERMINAL |
184581 |
- |
5 WAY FEMALE CONNECTOR |
184926 |
5 |
SEALED DOME SWITCH |
183940 |
6 |
5 WAY FEMALE CONNECTOR |
184926 |
7 |
SIDE CONSOLE TILT SWITCH MOUNT |
722121 |
8 |
SWITCH MOUNTING CLIP |
183726 |
9 |
7.50 AUTO ATC FUSE |
181460 |
10 |
HYDRAULIC DECK LIFT WIRE GROUP |
603873 |
