Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

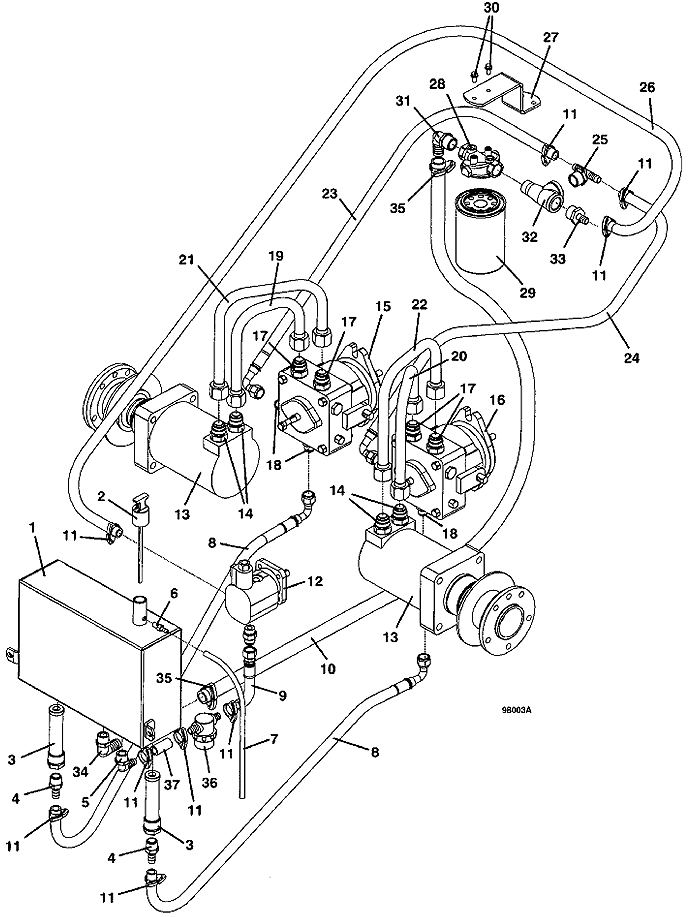

928D2 • Reservoir & Hose Assembly

1999

Reservoir and Hose Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

928DS RESERVOIR ASSEMBLY

603712

2

OIL RESERVOIR PLASTIC DIPSTICK

100729

3

TANK FILTER

366555

4

NYLON FITTING

363849

5

NYLON FITTING

363851

6

STRAIGHT BARBED FITTING

363826

7

CLEAR VENT HOSE

821724

8

HOSE ASSEMBLY

424331

9

HOSE ASSEMBLY

424326

10

.75 HYDRAULIC HOSE

821804

11

SPRING HOSE CLAMP

280265

12

700/900 G2 HYDRAULIC LIFT PUMP ASSEMBLY

604430

13

WHEEL MOTOR

391480

14

ADAPTER FITTING

360070

-

O RING

126534

-

O RING

126537

15

right HYDRO PUMP

391453

16

left HYDRO PUMP

391452

17

ADAPTER FITTING

360065

-

O RING

126534

-

O RING

126535

18

STEEL O RING BOSS FITTING

363832

19

TUBE ASSEMBLY

424625

20

TUBE ASSEMBLY

424626

21

TUBE ASSEMBLY

424631

22

TUBE ASSEMBLY

424632

23

HOSE ASSEMBLY

424344

24

HOSE ASSEMBLY

424343

25

NYLON FITTING

363860

26

.5 HYDRAULIC HOSE

821806

27

928DS FILTER MOUNT

732614

28

FILTER BASE

101026

29

TRANSMISSION OIL FILTER

100860

30

HEX WHIZ BOLT .250-20 X .500

253173

31

STEEL FITTING

363880

32

TEE

366826

33

NYLON FITTING

363859

34

NYLON FITTING

363853

35

PLASTIC SNAP HOSE CLAMP

280281

36

IN LINE STRAINER

366552

37

.5 HYDRAULIC HOSE

821791

return to 928d2 index return to top of page
