Genuine OEM Grasshopper® Mower Parts Diagrams

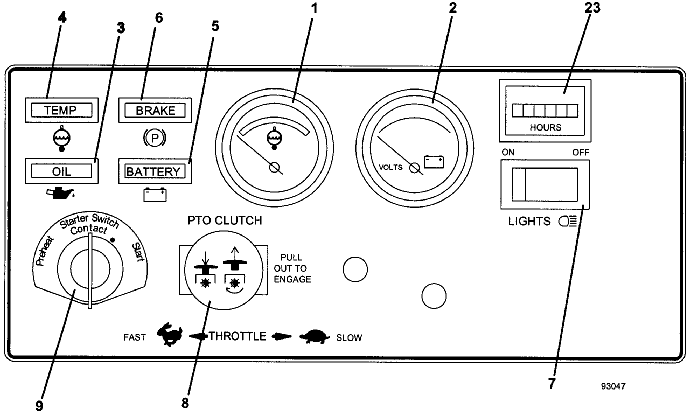

928D2 • Console
2000
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
ZONED ELECTRIC TEMPERATURE GAUGE |
141160 |
- |
GAUGE LIGHT KIT |
141210 |
2 |
VOLTMETER GAUGE |
141200 |
- |
GAUGE LIGHT KIT |
141210 |
3 |
OIL INDICATOR LIGHT |
182327 |
4 |
TEMP INDICATOR LIGHT |
182328 |
5 |
BATTERY INDICATOR LIGHT |
182325 |
6 |
BRAKE INDICATOR LIGHT |
182326 |
7 |
ROCKER SWITCH |
184179 |
8 |
PUSH/PULL SWITCH |
183925 |
9 |
KUBOTA SEALED IGNITION SWITCH with KEY |
183827 |
23 |
SNAP IN HOUR METER |
141551 |
24 |
CONSOLE DECAL for WATER COOLED 700 |
161131 |
