Genuine OEM Grasshopper® Mower Parts Diagrams

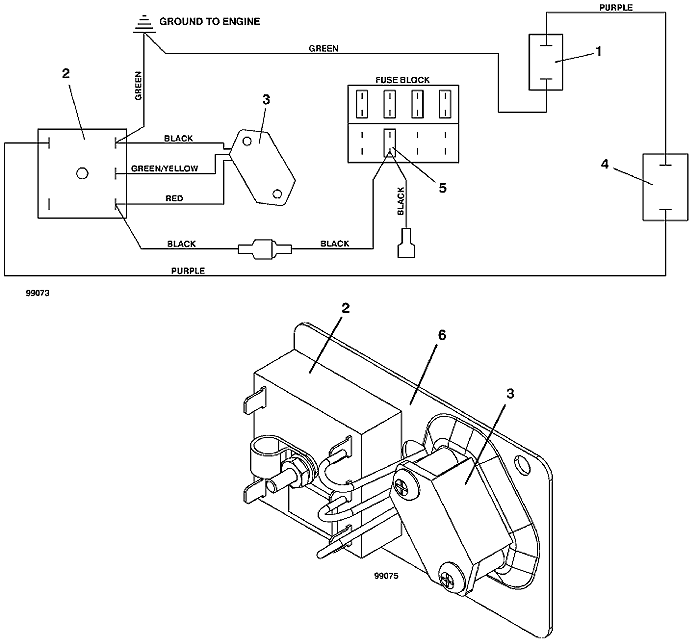

928D2 • Hydraulic Lift Wiring
2000
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
HYDRAULIC SOLENOID VALVE |
144950 |
2 |
DELAY TIMER |
143374 |
3 |
TILT SWITCH ASSEMBLY |
183700 |
4 |
SEALED DOME SWITCH |
183940 |
5 |
7.50 AUTO ATC FUSE |
181460 |
6 |
TILT SWITCH MAGNETIC MOUNT |
722080 |
