Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

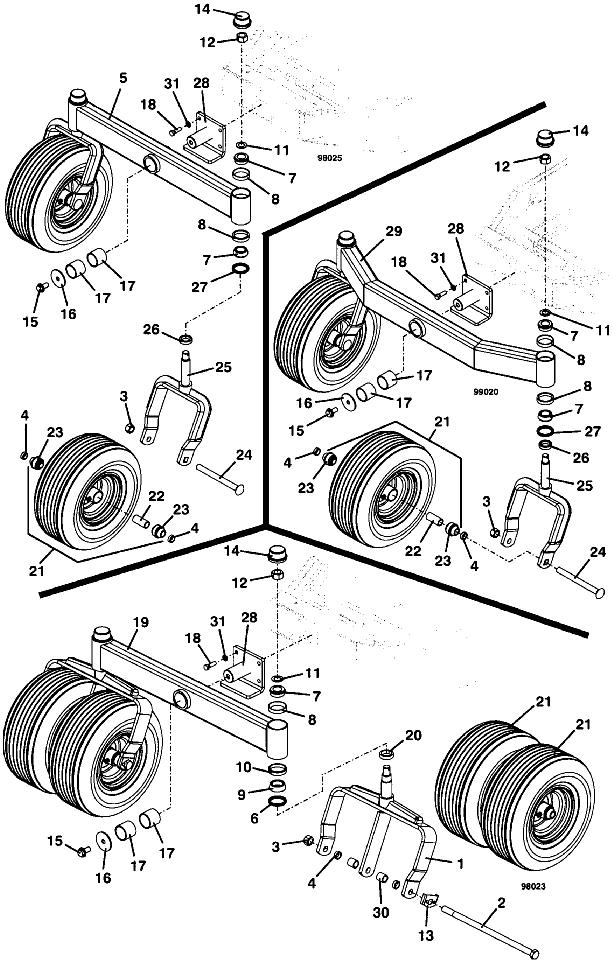

928D2 • Tail Wheel Options

2000

Tail Wheel Options

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

DUAL FORK & LOCK NUT ASSEMBLY

604366

2

HEX BOLT .625-11X14

243922

3

LOCK NUT .625-11

253970

4

AXLE SPACER

902422

5

DUAL WHEEL BEAM

824510

6

SEAL

125855

7

TAPER BEARING

122522

8

BEARING CUP

123522

9

TAPER BEARING

122523

10

BEARING CUP

123521

11

WASHER

257091

12

LOCK NUT

253992

13

FORK BOLT LOCK

723008

14

DUST CAP

481432

15

WHIZ BOLT

253243

16

WASHER

257061

17

REAMED OILITE BEARING

833275

18

GR 8 HEX BOLT

243334

19

DUAL WIDE BEAM

824508

20

SPACER

830420

21

13 x 6.5 x 6 WHEEL ASSEMBLY with BEARINGS

603975

22

CENTER REAR AXLE SPACER

902429

23

DP WHEEL BALL BEARING

120048

24

CARRIAGE BOLT

247725

25

FORK & LOCK NUT ASSEMBLY

604365

26

SPACER

282615

27

SEAL

125855

28

REAR AXLE PIVOT ASSEMBLY

604597

29

OFFSET BEAM

824516

30

AXLE SPACER

902425

31

LOCK WASHER

257412
