Genuine OEM Grasshopper® Mower Parts Diagrams

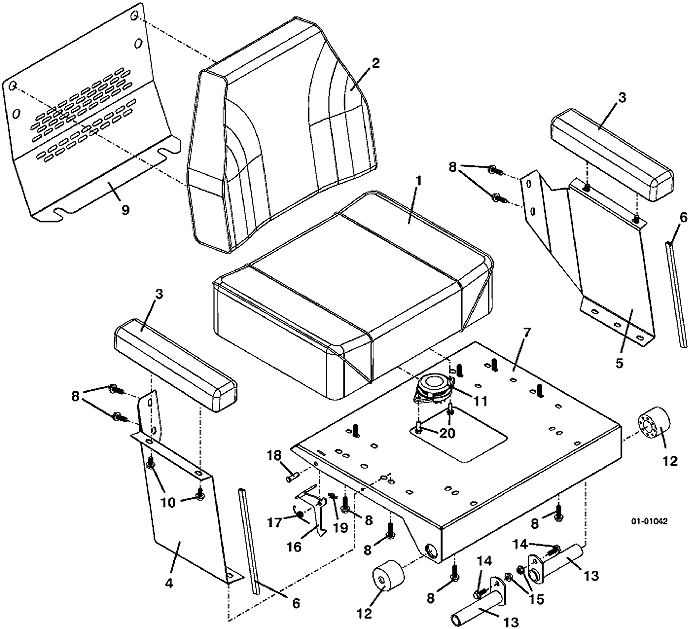

928D2 • Seat Assembly
2002
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
CORDURA FORMED SEAT CUSHION |
321521 |
2 |
CORDURA BACK CUSHION with LOGO |
321520 |
3 |
CORDURA SEAT ARMREST |
321522 |
4 |
right SIDE SEAT MEMBER |
724310 |
5 |
left SIDE SEAT MEMBER |
724311 |
6 |
SEAT EDGE TRIM |
822630 |
7 |
SEAT ISO (PLATFORM) W/A |
643912 |
8 |
HEX FLANGE WHIZ BOLT |
253193 |
9 |
SEAT REINFORCEMENT PANEL |
722388 |
10 |
HEX FLANGE WHIZ BOLT |
253191 |
11 |
SEAT SWITCH |
183870 |
12 |
SEAT ISOLATOR |
424095 |
13 |
SEAT HINGE PIN |
644618 |
14 |
HEX FLANGE WHIZ BOLT |
253192 |
15 |
WHIZ NUT |
253035 |
16 |
SEAT LATCH |
724112 |
17 |
TORSION SPRING |
284408 |
18 |
CLEVIS PIN .312 X.875 |
261280 |
19 |
COTTER PIN |
260648 |
20 |
HEX WHIZ BOLT |
253175 |
21 |
900 CORDURA SEAT ASSEMBLY with LOGO |
604746 |
