Genuine OEM Grasshopper® Mower Parts Diagrams

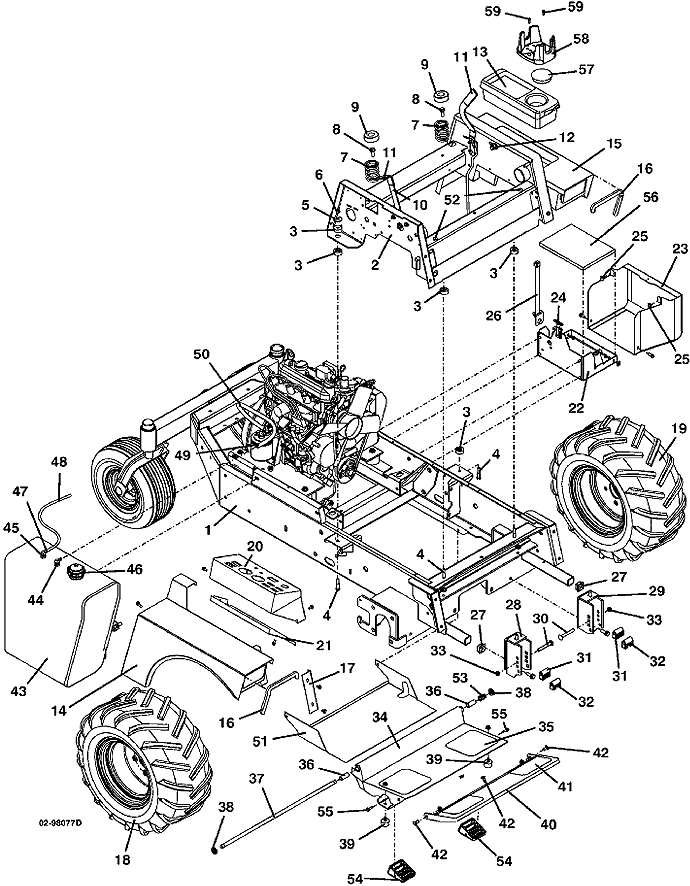

928D2 • Tractor Assembly
2002
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
900 8.0 LOWER CALIPER FRAME |
644236 |
2 |
G2 UPPER FRAME |
643871 |
3 |
STEP BUSHING |
257037 |
4 |
HEX BOLT |
243220 |
5 |
WASHER |
774020 |
6 |
NYLON INSERT NUT |
253450 |
7 |
COMPRESSION SPRING |
283516 |
8 |
FLANGE WHIZ BOLT |
253203 |
9 |
SEAT SPRING CAP |
422127 |
10 |
THROTTLE ASSEMBLY |
603856 |
- |
CONTROL CABLE ASSEMBLY |
323640 |
- |
THROTTLE LEVER STOP |
722009 |
11 |
HANDLE GRIP |
422150 |
12 |
SPACER |
902280 |
- |
HEX BOLT |
243330 |
- |
WASHER |
257040 |
13 |
TOOL BOX |
422040 |
14 |
700/900S right FENDER with DECAL |
693210 |
- |
928D right TRIM DECAL |
163370 |
15 |
700/900S left FENDER with DECAL |
693211 |
- |
928D left TRIM DECAL |
163371 |
16 |
700/900 FENDER EDGE TRIM |
822635 |
17 |
right FENDER COVER PANEL |
722062 |
18 |
right WHEEL AND TIRE 21 X 11 X 10 |
483940 |
- |
TURF TIRE 20 X 10 X 10 |
482474 |
- |
BAR TREAD TIRE 21 X 11 X 10 |
482484 |
- |
5 BOLT WHEEL 10 X 7.75 |
483420 |
- |
WHEEL & TURF TIRE 20 X 10 X 10 |
483924 |
19 |
left WHEEL & TIRE 21 X 11 X 10 |
483941 |
- |
TURF TIRE 20 X 10 X 10 |
482474 |
- |
BAR TREAD TIRE 21 X 11 X 10 |
482484 |
- |
5 BOLT WHEEL 10 X 7.75 |
483420 |
- |
WHEEL & TURF TIRE 20 X 10 X 10 |
483924 |
20 |
CONSOLE with DECAL for LIQUID-COOLED DIESEL |
693104 |
21 |
96 CONSOLE FILL PANEL |
721152 |
22 |
BATTERY BOX ASSEMBLY with STRAP |
603104 |
23 |
BATTERY BOX LID ASSEMBLY |
603570 |
24 |
RUBBER DRAW LATCH |
281301 |
25 |
RUBBER BUMPER |
424029 |
26 |
BATTERY HOLD DOWN STRAP |
603110 |
27 |
SQUARE PLASTIC PLUG |
422065 |
28 |
700 right QD DECK MOUNT |
643092 |
29 |
700 left QD DECK MOUNT |
643093 |
30 |
SPECIAL CARRIAGE BOLT |
247280 |
31 |
DECK MOUNT BUSHING |
282575 |
32 |
DECK MOUNT FLOATING BUSHING |
282576 |
33 |
NYLON INSERT NUT |
253460 |
34 |
700/900 ADJUSTABLE FOOT PLATFORM ASSEMBLY |
604346 |
35 |
FOOT REST TREAD |
420905 |
36 |
NYLON BEARING |
422615 |
37 |
FOOT PLATFORM PIVOT ROD |
780673 |
38 |
NYLON INSERT NUT |
253470 |
39 |
RUBBER BUMPER |
424052 |
40 |
FOOT PLATFORM EXTENSION |
603301 |
41 |
FOOT REST EXTENSION TREAD |
420904 |
42 |
CARRIAGE BOLT |
247130 |
43 |
8 GALLON DIESEL FUEL TANK with DECAL |
693234 |
44 |
FUEL TUBE |
101837 |
45 |
FUEL TUBE |
101835 |
46 |
CAP with FUEL LEVEL |
141130 |
47 |
HOSE SPRING CLAMP |
280257 |
48 |
FUEL LINE RETURN HOSE |
821740 |
49 |
HOSE SPRING CLAMP |
280261 |
50 |
FUEL LINE HOSE |
821716 |
51 |
G2 TRASH SHIELD |
721383 |
52 |
RUBBER BUMPER |
424015 |
53 |
COMPRESSION SPRING |
283312 |
54 |
FOOTREST ISOLATOR BLOCK |
424100 |
55 |
HEX BOLT |
243026 |
56 |
BATTERY TRAY PAD |
427275 |
57 |
3.252 DIAMETER CUP HOLE PLUG |
422066 |
58 |
CUP HOLDER |
150225 |
59 |
CAP SCREW |
259030 |
- |
NUT |
254436 |
60 |
DECAL SET for 928D2 with SIDE CONSOLE |
604302 |
