Genuine OEM Grasshopper® Mower Parts Diagrams

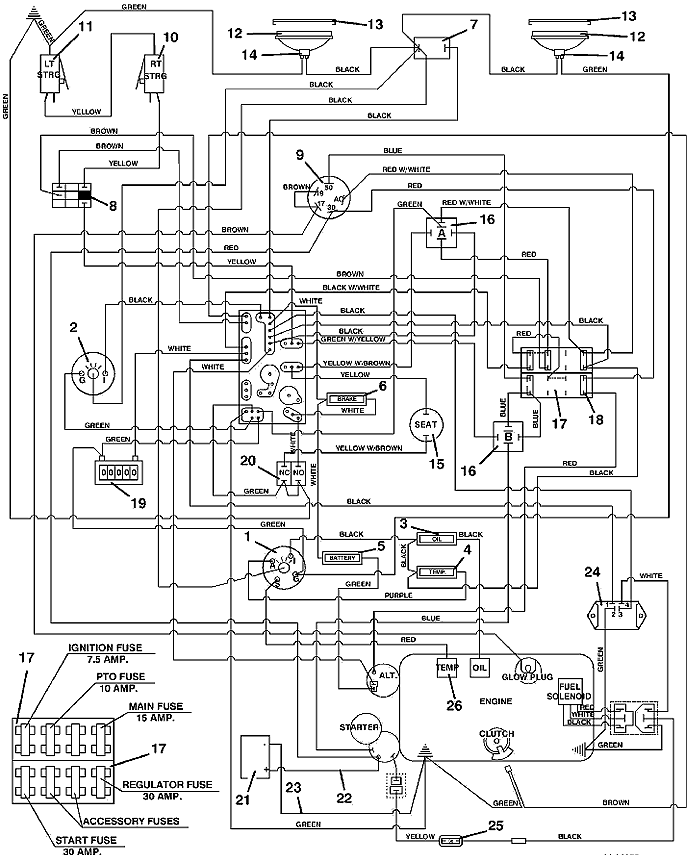

928D2 • Wiring
2002
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
ZONED ELECTRIC TEMPERATURE GAUGE |
141160 |
- |
GAUGE LIGHT KIT |
141210 |
2 |
VOLTMETER GAUGE |
141200 |
- |
GAUGE LIGHT KIT |
141210 |
3 |
OIL INDICATOR LIGHT |
182327 |
4 |
TEMPERATURE INDICATOR LIGHT |
182328 |
5 |
BATTERY INDICATOR LIGHT |
182325 |
6 |
BRAKE INDICATOR LIGHT |
182326 |
7 |
ROCKER SWITCH |
184179 |
8 |
PUSH/PULL SWITCH |
183925 |
9 |
KUBOTA SEALED KEY SWITCH |
183827 |
- |
KUBOTA DOUBLE NOTCH IGNITION KEY |
101106 |
10 |
LEVER SWITCH |
183860 |
- |
right STEERING SWITCH MOUNT |
720160 |
11 |
LEVER SWITCH |
183860 |
- |
left STEERING SWITCH MOUNT |
720161 |
12 |
HALOGEN FLOOD WORKLAMP with PIGTAIL |
182250 |
- |
HALOGEN LIGHT BULB |
182245 |
13 |
SNAP MOUNT WORKLAMP BEZEL |
182251 |
14 |
WORKLAMP WIRE HARNESS |
604895 |
15 |
SEAT SWITCH |
183870 |
16 |
12v DC RELAY |
184272 |
- |
TYPE 1 6mm PUSH-ON |
184570 |
- |
.250 FAST-ON TERMINAL |
184581 |
- |
5 WAY FEMALE CONNECTOR |
184926 |
17 |
FUSE BLOCK |
181722 |
- |
1 WIRE CLIP |
184458 |
- |
2 WIRE CLIP |
184460 |
- |
DOUBLE CLIP |
184472 |
18 |
30 amp ATC AUTO FUSE |
181470 |
- |
15 amp ATC AUTO FUSE |
181465 |
- |
10 amp ATC AUTO FUSE |
181462 |
- |
7.5 amp ATC AUTO FUSE |
181460 |
19 |
SNAP IN HOUR METER |
141551 |
20 |
BRAKE INTERLOCK SWITCH |
183894 |
21 |
12 VOLT SIDEPOST BATTERY |
180130 |
22 |
14" RED BATTERY CABLE |
180313 |
- |
BATTERY BOOT |
425223 |
- |
BATTERY TERMINAL BOOT |
425219 |
- |
RED ALTERNATOR BOOT TERMINAL |
425215 |
23 |
20" BLACK BATTERY CABLE |
180282 |
24 |
INTERLOCK MODULE SWITCH |
184220 |
25 |
INLINE AUTO FUSE HOLDER |
181735 |
- |
30 amp ATC AUTO FUSE |
181470 |
26 |
TEMPERATURE SENDER |
141222 |
27 |
928D 2000 CONSOLE WIRING ASSEMBLY |
604995 |
28 |
CONSOLE DECAL for WATER COOLED 700 |
161131 |
