Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

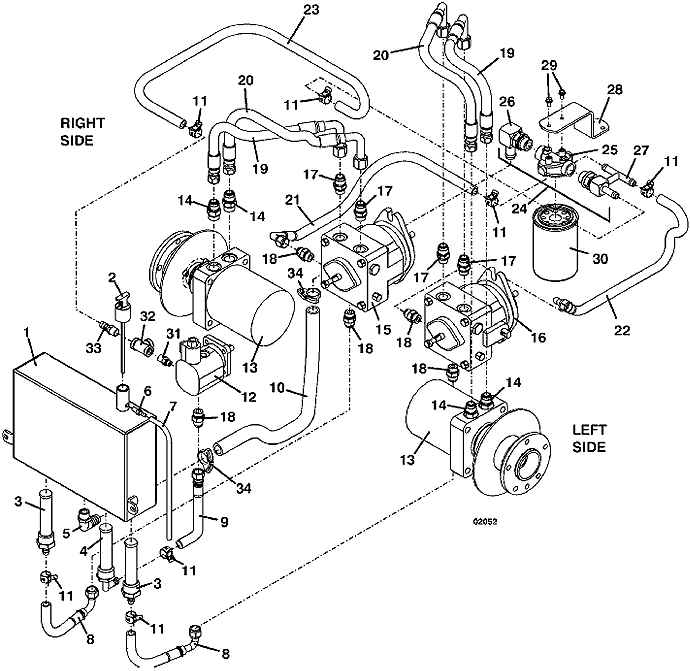

928D2 • Reservoir & Hose Assembly

2003

Reservoir and Hose Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

01-900 RESERVOIR ASSEMBLY

603704

2

OIL RESERVOIR PLASTIC DIPSTICK

100729

3

STRAINER

366556

4

STRAINER

366557

5

NYLON FITTING

363853

6

STRAIGHT BARBED FITTING

363826

7

CLEAR VENT HOSE

821724

8

HOSE ASSEMBLY

424331

9

HOSE ASSEMBLY

424339

10

.75 HYDRAULIC HOSE

821804

11

SPRING HOSE CLAMP

280265

12

counter-clockwise HYDRAULIC PUMP with SOLENOID VALVE

290074

13

WHEEL MOTOR with HUB

603604

14

ADAPTER FITTING

360069

-

O RING

126529

-

O RING

126537

15

right HYDRO PUMP

391453

16

left HYDRO PUMP

391452

17

ADAPTER FITTING

360064

-

O RING

126529

-

O RING

126535

18

O-RING STEEL BOSS FITTING

363832

19

HOSE ASSEMBLY

424378

20

HOSE ASSEMBLY

424379

21

HOSE ASSEMBLY

424344

22

HOSE ASSEMBLY

424343

23

.5 HYDRAULIC HOSE

821806

24

G2 FILTER BASE ASSEMBLY with HYD

101021

25

FILTER BASE

101027

26

12 BEADED O-RING ADAPTER

360076

27

3 BEADED O-RING ADAPTER

360075

28

928DS FILTER MOUNT

732614

29

HEX WHIZ BOLT

253173

30

TRANSMISSION OIL FILTER

100860

31

O-RING ADAPTER

360040

32

REDUCER TEE

366115

33

BRASS HOSE INSERT

360260

34

PLASTIC SNAP HOSE CLAMP

280281
