Genuine OEM Grasshopper® Mower Parts Diagrams

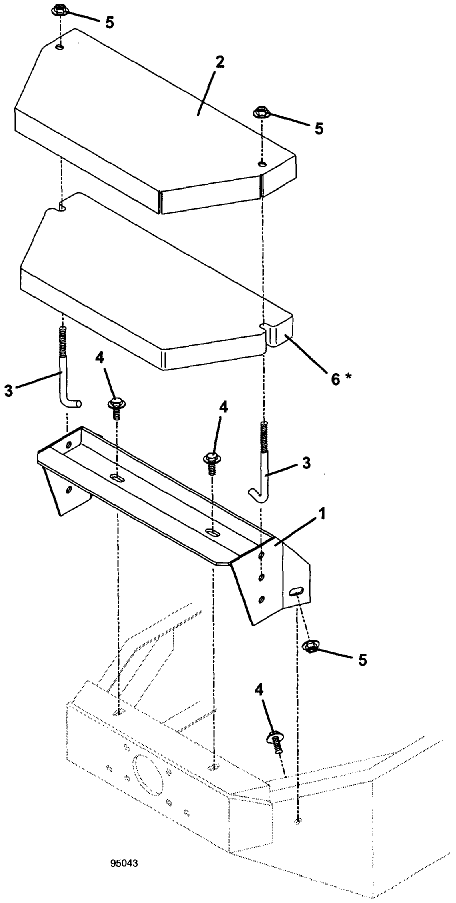

928D2 • Counterweight Mount Kit
2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
WEIGHT MOUNT |
643915 |
2 |
WEIGHT COVER - 50 LB |
729691 |
3 |
HOOK BOLT |
240151 |
4 |
WHIZ FLANGE BOLT .375-16 X 1 |
253203 |
5 |
WHIZ NUT .375-16 |
253043 |
6 |
COUNTERWEIGHT KIT - 50 LB |
503218 |
7 |
COUNTERWEIGHT MOUNT KIT |
503220 |
