Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

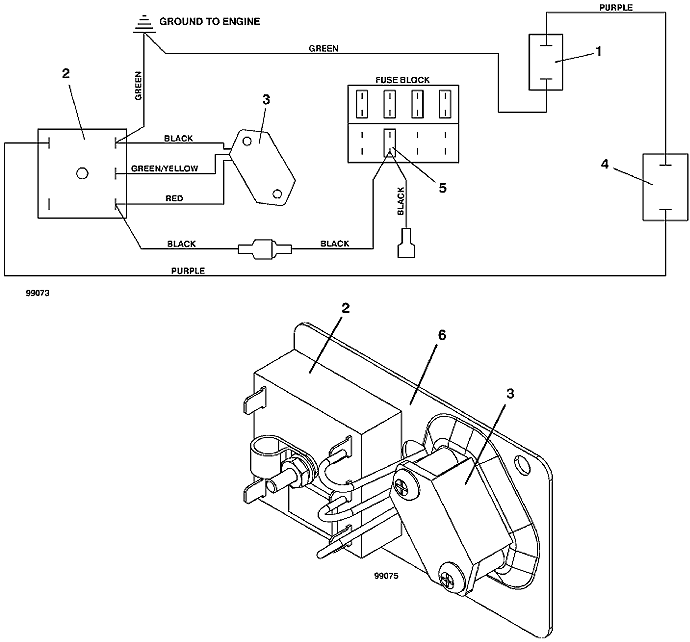

928D2 • Hydraulic Lift Wiring

2004

Hydraulic Lift Wiring

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

HYDRAULIC SOLENOID VALVE

144950

2

DELAY TIMER

143374

3

TILT SWITCH ASSEMBLY

183700

4

SEALED DOME SWITCH

183940

5

7.50 AUTO ATC FUSE

181460

6

TILT SWITCH MAGNETIC MOUNT

722080
