Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

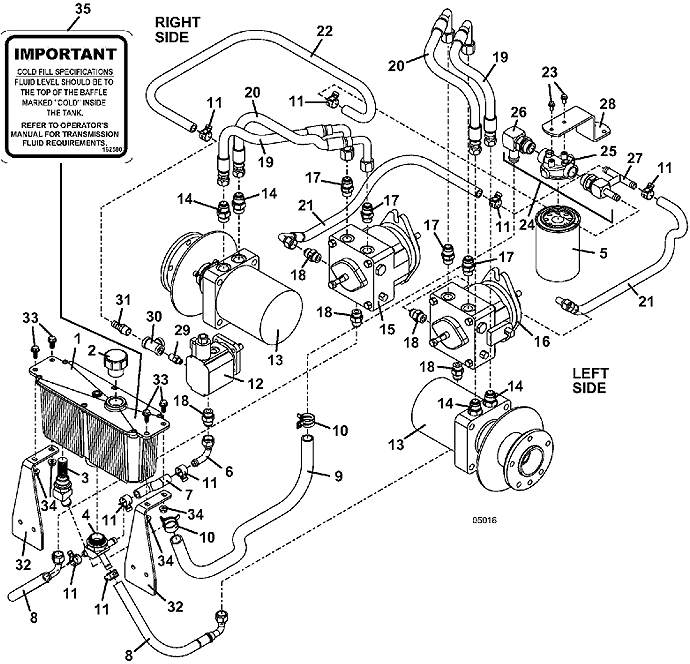

928D2 • Reservoir & Hose Assembly serial number 5517203 and above

2005

Reservoir and Hose Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

G2 OIL TANK ASSEMBLY

101690

2

FILL CAP

100760

3

FITTING with DIFFUSER

366571

4

TRIPLE-BARBED FITTING

366570

5

TRANSMISSION OIL FILTER

100860

6

FITTING

363857

7

HYDRAULIC HOSE

821781

8

HOSE ASSEMBLY

424339

9

.75 HYDRAULIC HOSE

821804

10

SPRING HOSE CLAMP

280268

11

SPRING HOSE CLAMP

280266

12

counter-clockwise HYDRAULIC PUMP with SOLENOID VALVE

290074

13

WHEEL MOTOR with HUB

603604

14

ADAPTER FITTING

360069

-

O RING

126529

-

O RING

126537

15

right HYDRO PUMP

391453

16

left HYDRO PUMP

391452

17

ADAPTER FITTING

360064

-

O RING

126529

-

O RING

126535

18

O-RING STEEL BOSS FITTING

363832

19

HOSE ASSEMBLY

424378

20

HOSE ASSEMBLY

424379

21

HOSE ASSEMBLY

424344

22

.5 HYDRAULIC HOSE

821806

23

HEX WHIZ BOLT

253173

24

G2 FILTER BASE ASSEMBLY with HYD

101021

25

FILTER BASE

101027

26

12 BEADED O-RING ADAPTER

360076

27

3 BEADED O-RING ADAPTER

360075

28

928DS FILTER MOUNT

732614

29

O-RING ADAPTER

360040

30

REDUCER TEE

366115

31

BRASS HOSE INSERT

360260

32

right ALUMINUM OIL TANK MOUNT

755128

33

HEX FLANGE WHIZ BOLT

253192

34

WHIZ NUT

253035

35

IMPORTANT OIL SPEC DECAL

162580
