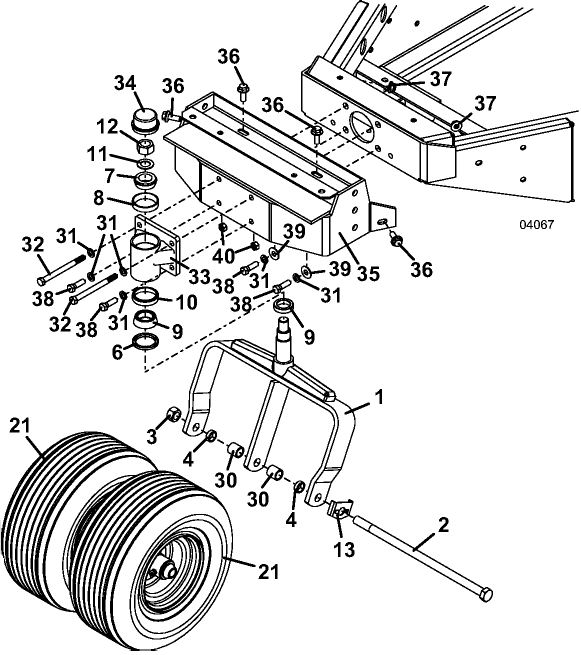

1

DUAL FORK & LOCK NUT ASSEMBLY

604366

2

HEX BOLT .625-11X14

243922

3

LOCK NUT .625-11

253970

4

AXLE SPACER

902422

5

DUAL WHEEL BEAM

824510

6

SEAL

125855

7

TAPER BEARING

122522

8

BEARING CUP

123522

9

TAPER BEARING

122523

10

BEARING CUP

123521

11

14 GA. BUSHING WASHER

257091

12

LOCK NUT

253992

13

FORK BOLT LOCK

723008

21

13 x 6.5 x 6 WHEEL ASSEMBLY with BEARINGS

603975

-

13 x 6.5 x 6 RIBBED TIRE

482355

-

6 x 4.5 TAN WHEEL without BEARINGS

483306

30

AXLE SPACER

902425

31

LOCK WASHER

257412

32

HEX BOLT

243393

33

REAR AXLE PIVOT ASSEMBLY

604595

34

DUST CAP

481432

35

DUAL FORK EXTENSION MOUNT

644302

36

WHIZ FLANGE BOLT

253203

37

WHIZ NUT

253043

38

GR 8 HEX BOLT

243334

39

WASHER

257040

40

NUT

254450
