Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

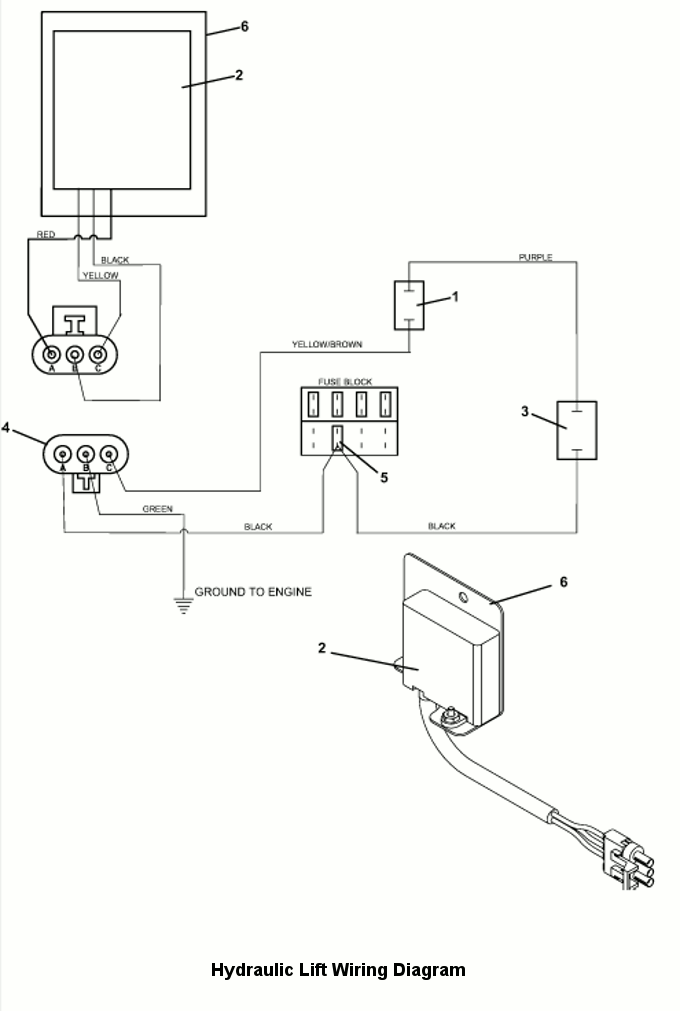

928D2 • Hydraulic Lift Wiring

2007

Hydraulic Lift Wiring

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

HYDRAULIC SOLENOID VALVE

144950

2

TILT SWITCH POWER COMPONENTS

183710

3

SEALED DOME SWITCH

183940

-

BLACK BUTTON CAP

183943

-

MOMENTARY TOGGLE

183954

4

3-WAY MALE WP CONNECTOR

184973

5

7.50 AUTO ATC FUSE

181460

6

TILT SWITCH MOUNT

722747
