Genuine OEM Grasshopper® Mower Parts Diagrams

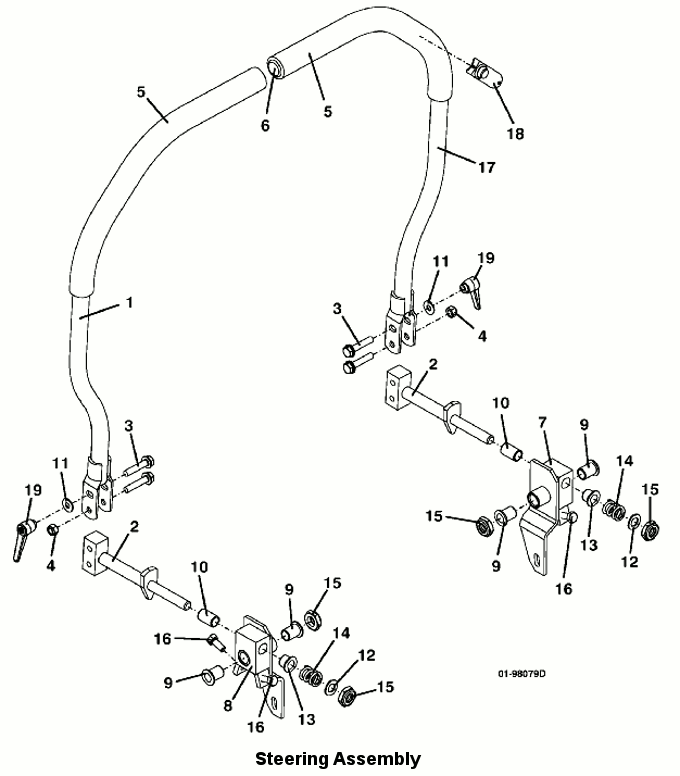

928D2 • Steering Assembly
2007
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
WIDE STD STEERING LEVER ASSEMBLY |
604778 |
2 |
STEERING LEVER ADJUSTER MOUNT |
643926 |
3 |
HEX FLANGE WHIZ BOLT |
253195 |
4 |
NUT with NYLON INSERT |
253450 |
5 |
HANDLE GRIP |
422179 |
6 |
.75 ID VINYL CAP |
422095 |
7 |
right STEERING PIVOT with STOP & BEARINGS |
604771 |
8 |
left STEERING PIVOT with STOP & BEARINGS |
604772 |
9 |
SLEEVE BEARING with FLANGE |
422559 |
10 |
SLEEVE BEARING |
422557 |
11 |
FLAT WASHER |
257019 |
12 |
WASHER |
257063 |
13 |
SLEEVE BEARING with FLANGE |
422556 |
14 |
COMPRESSION SPRING |
283324 |
15 |
NUT with NYLON INSERT |
253470 |
16 |
HEX BOLT |
243197 |
17 |
WIDE STD STEERING LEVER ASSEMBLY with SWITCH |
604779 |
18 |
HYD LIFT SWITCH/MT ASSEMBLY |
604799 |
- |
BLACK BUTTON CAP |
183943 |
19 |
ADJUSTABLE LEVER NUT |
254438 |
