Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

928D2 • Console

2008

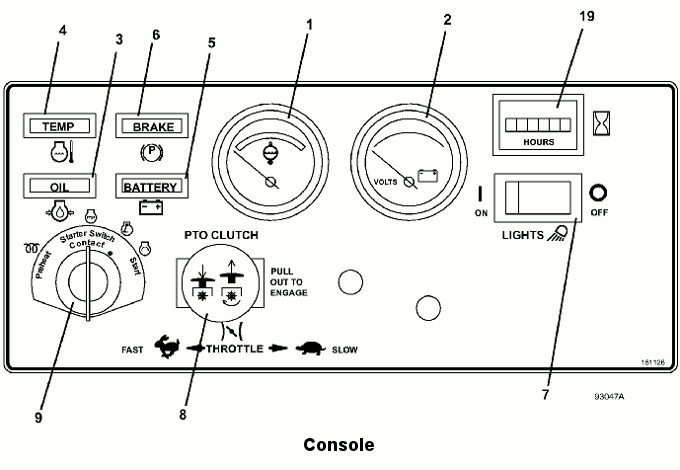

Console

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

ZONED ELECTRIC TEMPERATURE GAUGE

141160

-

GAUGE BACKLIGHT LAMP

182247

2

VOLTMETER GAUGE

141200

-

GAUGE BACKLIGHT LAMP

182247

3

OIL INDICATOR LIGHT

182327

4

TEMPERATURE INDICATOR LIGHT

182328

5

BATTERY INDICATOR LIGHT

182325

6

BRAKE INDICATOR LIGHT

182326

7

ROCKER SWITCH

184179

8

PUSH/PULL SWITCH

183925

9

KUBOTA SEALED IGNITION SWITCH with KEY

183827

19

SNAP IN HOUR METER

141551

20

CONSOLE DECAL

161123
