Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

928D2 • Tail Wheel Options - 2

2008

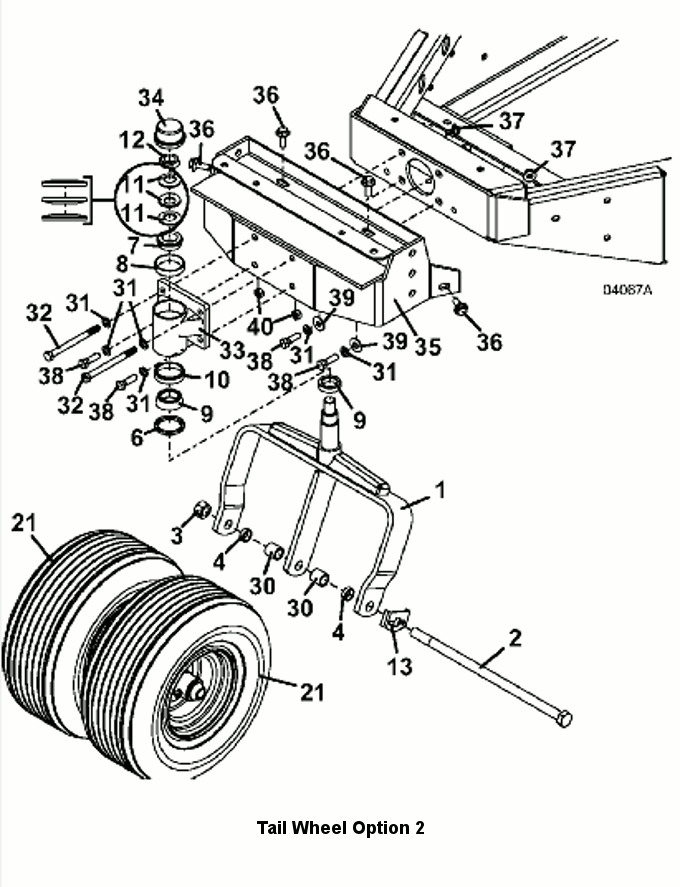

Tail Wheel Options

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

DUAL FORK & LOCK NUT ASSEMBLY

604366

2

HEX BOLT .625-11X14

243922

3

LOCK NUT .625-11

253970

4

AXLE SPACER

902422

6

SEAL

125855

7

TAPER BEARING

122522

8

BEARING CUP

123522

9

TAPER BEARING

122523

10

BEARING CUP

123521

11

SPRING WASHER

257320

12

NUT JAM NYLON TOP LOCK

254505

13

FORK BOLT LOCK

723008

21

13 x 6.5 x 6 WHEEL ASSEMBLY with BEARINGS

603975

-

13 x 6.5 x 6 RIBBED TIRE

482355

-

6 x 4.5 TAN WHEEL without BEARINGS

483306

30

AXLE SPACER

902425

31

LOCK WASHER

257412

32

HEX BOLT

243393

33

REAR AXLE PIVOT ASSEMBLY

604595

34

DUST CAP

481432

35

DUAL FORK EXTENSION MOUNT

644302

36

WHIZ FLANGE BOLT

253203

37

WHIZ NUT

253043

38

GR 8 HEX BOLT

243334

39

WASHER

257040

40

NUT

254450
