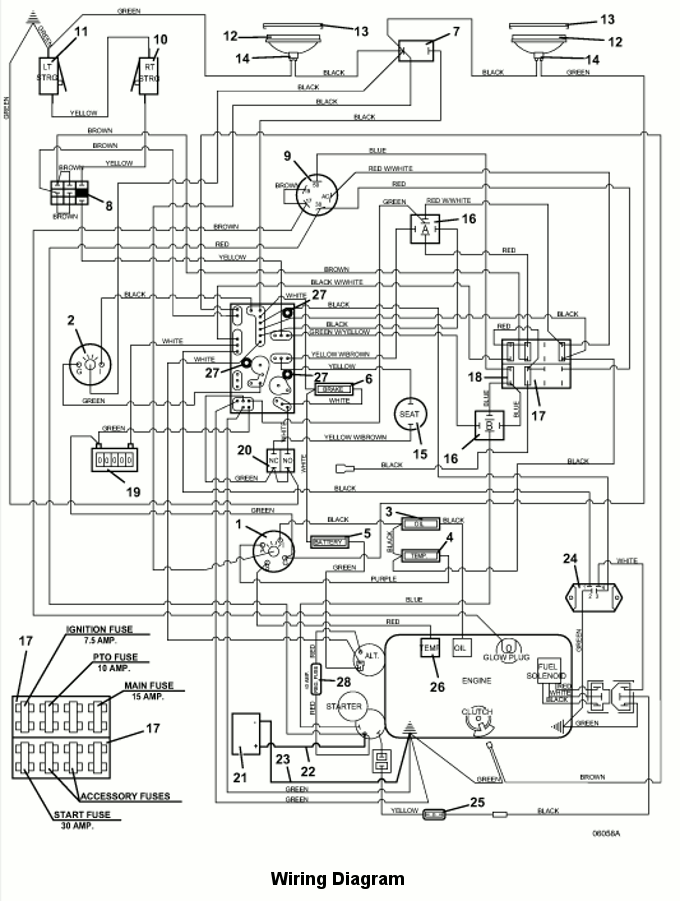

928D2 • Wiring

2008

Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

ZONED ELECTRIC TEMPERATURE GAUGE

141160

-

GAUGE BACKLIGHT LAMP

182247

2

VOLTMETER GAUGE

141200

-

GAUGE BACKLIGHT LAMP

182247

3

OIL INDICATOR LIGHT

182327

4

TEMPERATURE INDICATOR LIGHT

182328

5

BATTERY INDICATOR LIGHT

182325

6

BRAKE INDICATOR LIGHT

182326

7

ROCKER SWITCH

184179

8

PUSH/PULL SWITCH

183925

9

KUBOTA SEALED KEY SWITCH

183827

-

KUBOTA DOUBLE NOTCH IGNITION KEY

101106

10

LEVER SWITCH

183860

-

right STEERING SWITCH MOUNT

720160

11

LEVER SWITCH

183860

-

left STEERING SWITCH MOUNT

720161

12

HALOGEN FLOOD WORKLAMP with PIGTAIL

182250

-

HALOGEN LIGHT BULB

182245

13

SNAP MOUNT WORKLAMP BEZEL

182251

14

WORKLAMP WIRE HARNESS

604895

15

TWIST-IN SEAT SWITCH

183871

16

12v DC RELAY

184272

-

TYPE 1 6mm PUSH-ON

184570

-

.250 FAST-ON TERMINAL

184581

-

5 WAY FEMALE CONNECTOR

184926

17

FUSE BLOCK

181722

-

1 WIRE CLIP

184458

-

2 WIRE CLIP

184460

-

DOUBLE CLIP

184472

18

30 amp ATC AUTO FUSE

181470

-

15 amp ATC AUTO FUSE

181465

-

10 amp ATC AUTO FUSE

181462

-

7.5 amp ATC AUTO FUSE

181460

19

SNAP IN HOUR METER

141551

20

BRAKE INTERLOCK SWITCH

183894

21

12 VOLT SIDEPOST BATTERY - WET

180130

-

12 VOLT SIDEPOST BATTERY - DRY

180131

-

HEX BOLT

243309

22

14" RED BATTERY CABLE

180313

-

BATTERY BOOT

425223

-

BATTERY TERMINAL BOOT

425219

-

RED ALTERNATOR BOOT TERMINAL

425215

23

20" BLACK BATTERY CABLE

180282

24

INTERLOCK MODULE SWITCH

184220

25

INLINE AUTO FUSE HOLDER

181735

-

30 amp ATC AUTO FUSE

181470

26

TEMPERATURE SENDER

141222

27

PC BOARD SUPPORT SPACER

423690

28

IN-LINE REGULATOR FUSE HOLDER

604888

-

AUTO ATC - 40 FUSE

181475

29

928D CONSOLE WIRING ASSEMBLY

604969

30

CONSOLE DECAL for WATER COOLED 700

161131
