Genuine OEM Grasshopper® Mower Parts Diagrams

930D2 • Wiring & Lights #6312279 & Above

2013

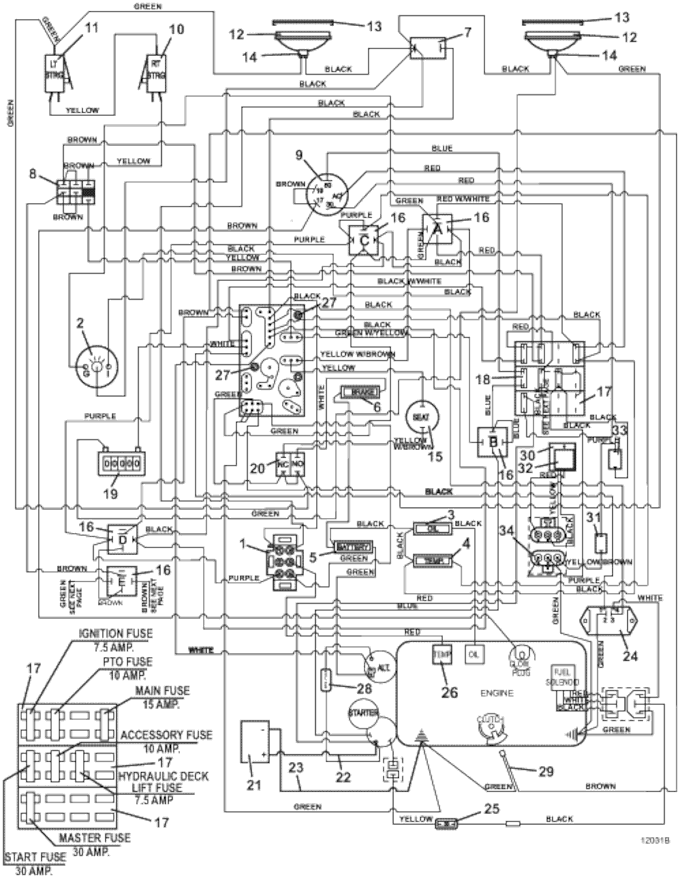

Wiring - Electrical System

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Zoned Electric Temperature Gauge

141165

2

Voltmeter Gauge

141203

-

Light Bulb - NOT AVAILABLE

182007

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Rocker Switch

184179

8

Switch Push/Pull

183925

9

Switch Key Sealed - Kubota

183827

-

Kubota Double Notch Ignition Key

101106

10

Lever Switch

183860

-

Steering Switch Mount - right

720160

11

Lever Switch

183860

-

Steering Switch Mount - left

720161

12

Flood Worklamp - Halogen

182250

-

Light Bulb - Halogen

182245

13

Snap Mount Worklamp Bezel

182251

14

900 Series Worklamp Harness - NOT AVAILABLE

604895

15

Twist-in Seat Switch

183871

16

12V DC Relay w/Diode

184266

17

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Fuse Clip

184472

18

30 amp Auto ATC Fuse

181470

-

7.5 amp Auto ATC Fuse

181460

-

10 amp Auto ATC Fuse

181462

-

15 amp Auto ATC Fuse

181465

19

Snap-In Hour Meter

141551

20

Brake Interlock Switch

183894

21

12 Volt Side Post Wet Battery

180130

-

12V Side Post Dry Battery

180131

-

Hex Bolt

243309

22

14" Battery Cable - Red

180313

-

Red Alternator Terminal Boot

425215

-

Starter Terminal Boot

425219

-

Battery Terminal Boot

425223

23

20" Battery Cable - Black

180282

24

Interlock Switch Module

184220

25

Inline Auto Fuse Holder

181735

-

Auto ATC 30 Amp Fuse

181470

26

Temperature Sender

141224

27

PC Board Support Spacer

423690

28

Regulator Fuse Inline Holder

604880

-

Auto ATC 40 Amp Fuse

181475

29

Pigtail Cable Assembly

388840

30

Tilt Switch Mount

722747

31

12V Hydraulic Lift Solenoid Valve

144951

32

Power Components Tilt Switch

183710

33

Sealed Dome Switch

183940

-

Black Button Cup

183943

-

Momentary Toggle

183954

34

3Way Male WP Connector

184973

35

930D Wiring Assembly

605898

Return to 930D2 Index Return to Top
