930D2 • Drive Assembly for Serial #6411698 & Below

2014

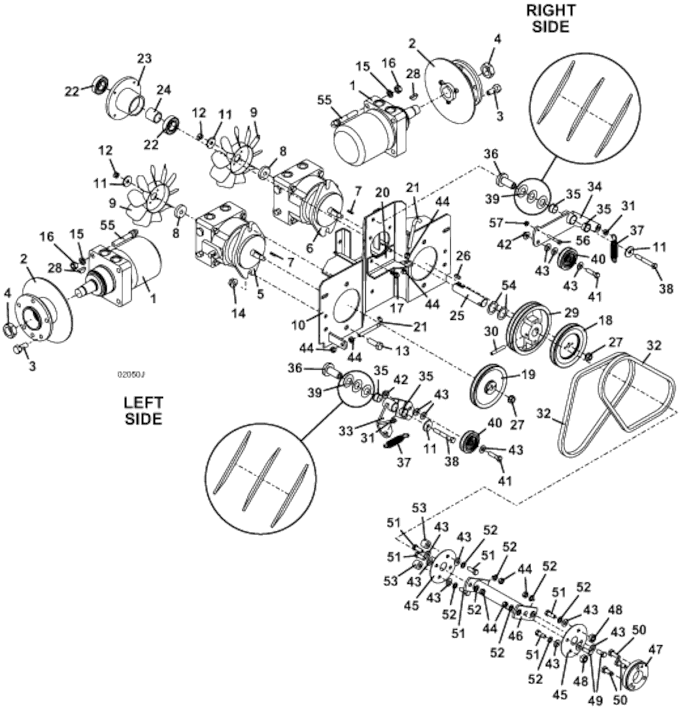

Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603604

2

Hub & Rotor Assembly

604436

3

Lug Bolt

248565

4

Nut

254522

5

Hydro Pump - Left

391452

6

Hydro Pump - Right

391453

7

Rectangle Key

281562

8

10A Fan Mount Hub

885123

9

Clockwise 7” Nylon Fan

320857

10

900 Drive Mount

644630

11

Washer

774020

12

Nut

254452

13

Hex Bolt

243565

14

Whiz Nut

253066

15

Lock Washer

257432

16

Nut

254470

17

Hex Flange Whiz Bolt

253192

18

Sheave

415021

19

Sheave

415022

20

928 Spring Bracket

725028

21

Idler Adjustment J Bolt

730391

22

2 Metal Seal 25mm Ball Bearing

110080

23

Vac Fan Spindle Housing

320522

24

Drive Bearing Spacer

903650

25

700G2 Drive Shaft

882052

26

Square Key

281580

27

Whiz Nut

253061

28

Woodruff Key

281860

29

Sheave

415038

30

Roll Pin

261061

31

Nylon Bearing

422520

32

Belt

381540

33

Idler Arm Assembly

824491

34

G2 Upper Idler Arm Assembly

604450

35

Oilite Bearing

121756

36

Pedestal Bearing

121651

37

Extension Spring with Swivel

283819

38

Hex Bolt

243360

39

Spring Washer

257319

40

Idler

604449

41

Hex Bolt

243340

42

Whiz Nut

253043

43

Washer

257030

44

Nut

254450

45

Flex Coupling Disc

821530

46

Coupling Connector

644153

47

Coupling Adapter

885285

48

Coupling Spacer

902318

49

Thin Head Hex Bolt

243329

50

M10 Socket Head Screw

270085

51

Hex Bolt

243330

52

Lock Washer

257412

53

G2 Drive Spacer

902328

54

Washer

257106

55

Diamond Head Bolt

243597

56

Hex Bolt

243038

57

Whiz Nut

253025

return to 930D2 index return to top of page
