Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

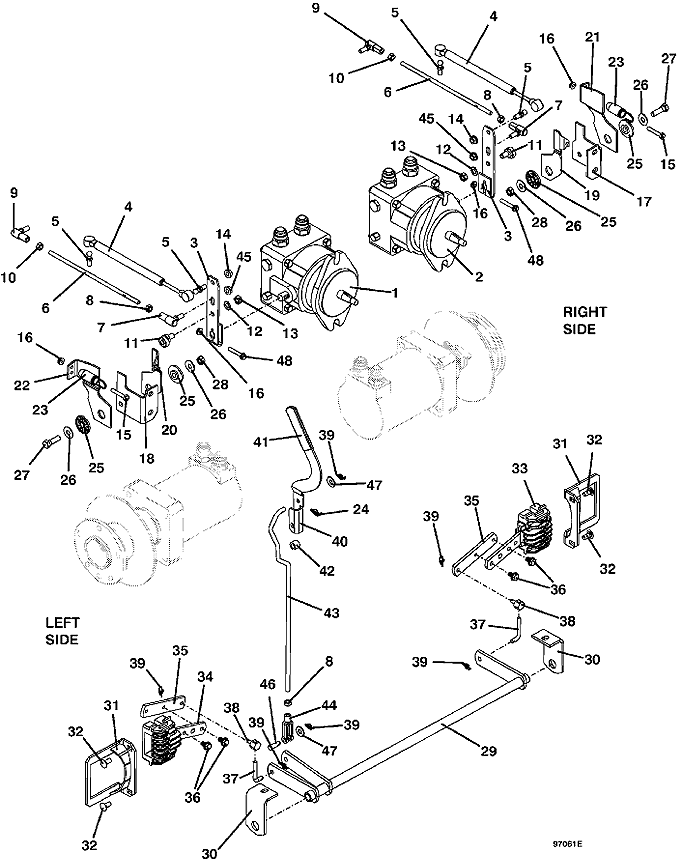

932G2 • Drive Linkage Assembly

2002

Drive Linkage Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hydro Pump - left

391452

-

Seal

125165

-

Square Charge Cover Seal Ring

130020

2

Hydro Pump - right

391453

-

Seal

125165

-

Square Charge Cover Seal Ring

130020

3

Pump Control Arm - right

725338

4

Damper

285031

5

Ball Stud

265680

6

Steering Linkage Pump Rod

780164

7

Ball Joint - Leftthand Thread

265616

8

Nut

254444

9

Ball Joint - Righthand Thread

265615

10

Nut

254441

11

Eccentric Roller Assembly

603726

12

Washer

257410

13

Nut .375-16

254450

14

Whiz Nut

253035

15

Hex Bolt

243035

16

Whiz Nut

253025

17

21L Neutral Return Mount - right

729225

18

21 Neutral Return Mount - left

729226

19

Neutral Return Arm -right

729138

20

Neutral Return Arm - left

729139

21

Neutral Return Front Arm - right

729136

22

Neutral Return Front Arm - left

729137

23

Extension Spring

283823

24

Cotter Ring

260608

25

Neutral Return Pivot Bearing

822304

26

Washer

257040

27

Hex Bolt

243335

28

Lock Nut

253890

29

900DG2 Linkage Rod

644521

30

Brake Pivot Mount Bracket

732610

31

M1/G2 Caliper Mount

644121

32

Carriage Bolt

247130

33

Clockwise Brake Caliper Assembly

481100

-

Brake Pad Kit

603150

34

Counterclockwise Brake Caliper Assembly

481101

-

Brake Pad Kit

603150

35

Rotor Brake Linkage

782874

36

Whiz Bolt

253189

37

928 Brake Linkage Rod

730155

38

Brake Linkage Pin

880924

39

Cotter Ring

260606

40

split Drive Brake Lever

754045

41

Handle Grip

422150

42

Brake Lever Spacer

423705

43

700 Brake Linkage Rod

730361

44

Clevis Yoke

265537

45

Whiz Nut

253038

46

Clevis Pin

261284

47

Washer

257030

48

Hex Whiz Bolt

253182

return to 932G2 index return to top of page
