Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

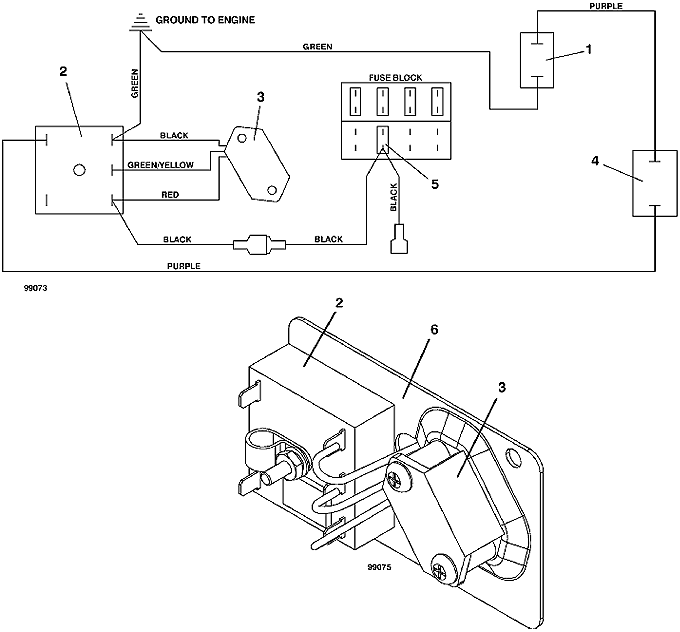

932G2 • Wiring for Hydraulic Lift

2002

Hydraulic Lift Wiring

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hydraulic Solenoid Valve

144950

2

Delay Timer

143374

3

Tilt Switch Assembly

183700

4

Sealed Dome Switch

183940

5

7.50 Auto ATC Fuse

181460

6

Magnetic Tilt Switch Mount

722080
