Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

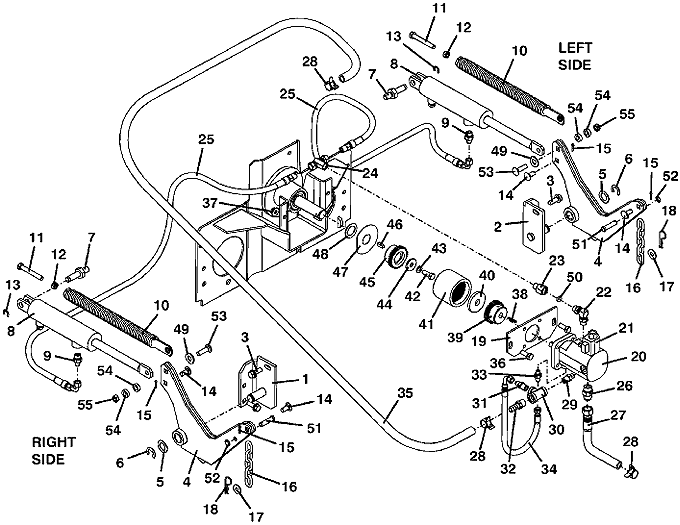

932G2 • Hydraulic Lift Assembly

2002

Hyadraulic Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

900 right Lift Pivot

644517

2

900 left Lift Pivot

644518

3

Flange Whiz Bolt

253203

4

Hydraulic Lift Rocker

603716

5

18 GA Bushing Washer

257092

6

External Retainer

263529

7

Cylinder Mount Pin w/Groove

887119

8

Hydraulic Cylinder

290021

-

Hydraulic Lift Cylinder HD Seal Kit

290096

9

O Ring Adapter

360052

10

Traction Kit Spring Assembly

605760

11

Hex Bolt

243361

12

Nut

254450

13

External Retainer

263500

14

Clevis Pin

261339

15

Cotter Pin

260648

16

Lift 3 Links Chain

820320

17

Washer

257040

18

Hair Pin

260523

19

Pump Mount Plate

725326

20

Hydraulic Pump w/Solenoid Valve - CCW

290074

21

Hydraulic Valve Solenoid

144950

22

90 degree O-Ring Adapter

360055

23

O-Ring Adapter

360045

24

Swivel Tee Adapter

360005

25

Hose Assembly

424310

26

Steel O Ring Boss Fitting

363832

27

Hose Assembly

424339

28

Spring Hose Clamp

280265

29

O-Ring Adapter

360040

30

Reducer Tee

366115

31

Adapter Fitting

360012

32

Brass Hose Insert

360260

33

O-ring Adapter

360050

34

Hose Assembly

424302

35

.5 Hydraulic Hose

821806

36

Hex Bolt

243330

37

Whiz Nut

253043

38

Square Key

281540

39

Coupler Hub

388576

40

Coupling Stabilizer

424150

41

Nylon Coupler Sleeve

388560

42

Hex Bolt

243331

43

Lock Washer

257412

44

Washer

774020

45

Lower Flex Coupler

831039

46

Square Key

281580

47

Washer

770045

48

Washer

257106

49

Washer

257062

50

Flow Restrictor

780507

51

Clevis Pin

261355

52

Push-On Retainer

262950

53

Carriage Bolt

247254

54

.25 Traction Kit Spacer

881095

55

Lock Nut

253890
