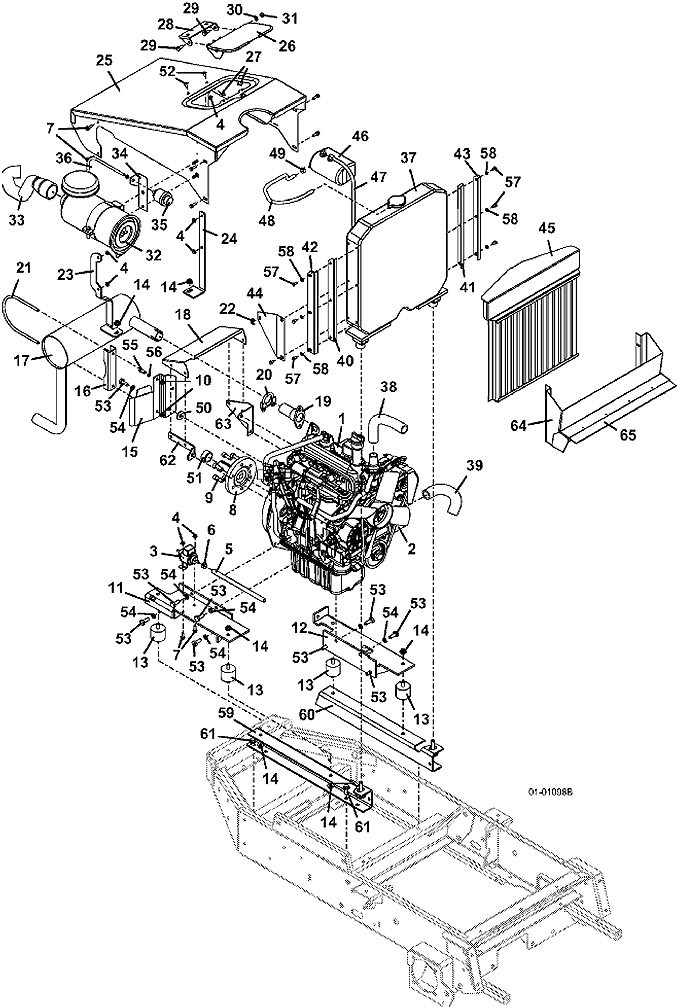

932G2 • Engine Assembly
2003
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Kubota Gas Engine |
100178 |
2 |
Kubota Oil Filter |
100805 |
3 |
Electric Fuel Pump |
101510 |
4 |
Whiz Nut |
253025 |
5 |
928D Fuel Line Hose |
821716 |
6 |
Spring Hose Clamp |
280261 |
7 |
Truss Whiz Bolt |
253177 |
8 |
Clutch Stub Shaft |
824641 |
9 |
M10 Socket Head Screw |
270085 |
10 |
Whiz Nut |
253035 |
11 |
400/900 Engine Mount - right |
643028 |
12 |
400/900 Engine Mount - left |
643029 |
13 |
Vibration Isolator |
424078 |
14 |
Whiz Nut |
253043 |
15 |
Muffler Bracket Mount |
754110 |
16 |
400 series Muffler Bracket |
754098 |
17 |
Kubota Muffler |
101232 |
18 |
Clutch Shield |
722283 |
19 |
Exhaust Flange |
644237 |
20 |
Exhaust Clamp |
101356 |
21 |
U-Bolt |
321250 |
22 |
Dual Conduit Clip |
180640 |
23 |
432 right Hood Mount |
726102 |
24 |
400 left Hood Mount |
726099 |
25 |
432/932 Hood |
644327 |
26 |
928 Hood Door |
643967 |
27 |
Rubber Bumper |
424029 |
28 |
928 Hood Bracket |
724059 |
29 |
Hex Bolt |
243195 |
30 |
Spring Washer |
284312 |
31 |
Nylon Insert Nut |
253450 |
32 |
Kubota Air Filter |
100939 |
33 |
432/932 Air Intake Hose |
424522 |
34 |
Filter Minder Bracket |
723078 |
35 |
Filter Minder & Mount Assembly |
603325 |
36 |
Filter Minder Hose |
821695 |
- |
Brass Bulk HD Fitting |
360090 |
37 |
Kubota Radiator |
101615 |
38 |
Upper Radiator Hose |
101056 |
39 |
Lower Radiator Hose |
101057 |
40 |
right Radiator Grille Mount |
722114 |
41 |
left Radiator Grille Mount |
722115 |
42 |
Outer Right Grille Support |
722058 |
43 |
Outer Left Grille Support |
722059 |
44 |
Throttle Cable Clamp Plate |
723134 |
45 |
400/900 Grille |
644667 |
46 |
Expansion Tank |
422012 |
47 |
Clear Vent Hose |
821748 |
48 |
Hose |
821749 |
49 |
Spring Hose Clamp |
280260 |
50 |
Washer |
774020 |
51 |
Spacer |
902586 |
52 |
Truss Whiz Bolt |
253176 |
53 |
Hex Bolt |
271120 |
54 |
Lock Washer |
275580 |
55 |
8m Hex Head |
271020 |
56 |
Lock Washer |
257402 |
57 |
Hex Bolt |
270820 |
58 |
Lock Washer |
257392 |
59 |
right Engine Mount Rail |
725300 |
60 |
left Engine Mount Rail |
725301 |
61 |
Flange Whiz Bolt |
253203 |
62 |
932 Clutch Shield Bracket |
755012 |
63 |
Shield Mount Bracket |
729094 |
64 |
Intake Duct with Shield |
644360 |
65 |
Grille Seal |
424160 |
