Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

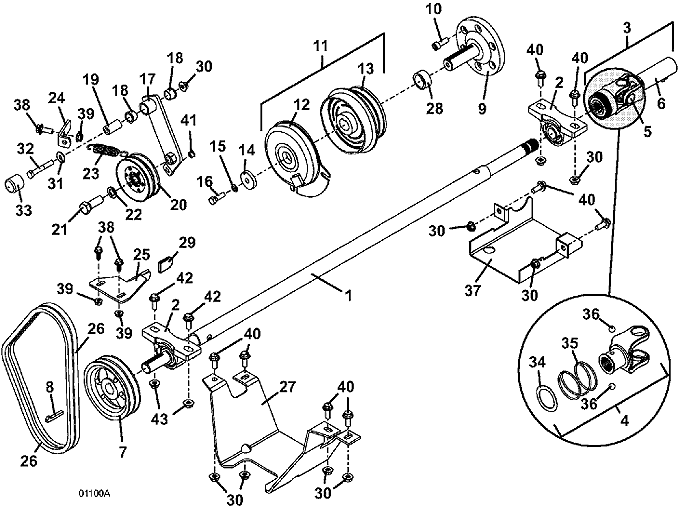

932G2 • PTO Shaft & Clutch Assembly

2003

PTO Shaft Clutch and Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Power Shaft

643730

2

Pillowblock SC Bearing

122044

3

UN Half Sleeve

398914

4

QD Splined Yoke

401019

5

Cross Bearing

121010

6

Yoke w/Sleeve

401017

7

Sheave

415650

8

Gib Square Key

281588

9

Clutch Stub Shaft

824641

10

M10 Socket Head Screw

270085

11

Integral Plug Clutch

388769

12

Field Assembly w/Brake

388872

13

Armature & Rotor Assembly

388862

14

Washer

883803

15

Lock Washer

257412

16

Hex Bolt GR 8

243337

17

PTO 928 Idler Arm

824497

18

Oilite Bearing

121756

19

Pivot Shaft Bearing

881105

20

Sheave

415610

21

Hex Bolt

243805

22

Lock Washer

257452

23

Extension Spring w/Swivel

283819

24

Idler Spring Bracket

732524

25

928 Anti-Rotation Bracket

725102

26

Belt

381914

27

900 Sheave Guard

725303

28

Spacer

902586

29

Clutch Bracket Cover

422088

30

Whiz Nut

253043

31

Washer

257040

32

Hex Bolt

243335

33

1.125 ID Vinyl Cap

422098

34

External Retainer

263660

35

Compression Spring

283525

36

Steel Ball

300014

37

PTO Shaft Shield

729287

38

Hex Flange Whiz Bolt

253192

39

Whiz Nut

253035

40

Whiz Flange Bolt

253203

41

Nylon Bearing

422520

42

Hex Bolt

243340

43

Washer

257040

-

Nut

254450

-

Lock Washer

257412
