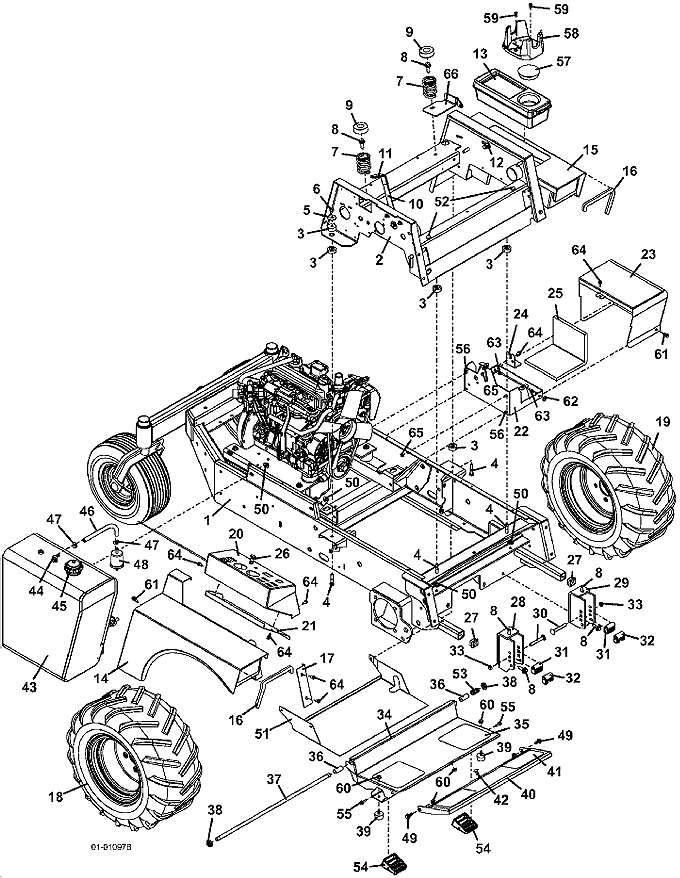

Item # |
Description |
Part Number |
1 |
900 Front Ports Lower Frame |
644285 |
2 |
Upper G2 Frame |
643871 |
3 |
Step Bushing |
257037 |
4 |
Hex Bolt |
243220 |
5 |
Washer |
774020 |
6 |
Nylon Insert Nut |
253450 |
7 |
Compression Spring |
283516 |
8 |
Flange Whiz Bolt |
253203 |
9 |
Seat Spring Cap |
422127 |
10 |
932 Throttle Assembly includes Cable Assembly
(NOTE: This item is non-returnable.) |
603857 |
- |
Cable Assembly Control |
323646 |
- |
Throttle Lever Stop |
722009 |
11 |
Handle Grip |
422150 |
12 |
Spacer |
902280 |
- |
Hex Bolt |
243330 |
- |
Washer |
257040 |
13 |
Tool Box |
422040 |
14 |
right 700/900 Fender with Safety Decal |
693210 |
- |
right 932 Trim Decal |
163372 |
15 |
left 700/900 Fender with Safety Decal |
693211 |
- |
left 932 Trim Decal |
163373 |
16 |
700/900 Fender Edge Trim |
822635 |
17 |
right Fender Cover Panel |
722062 |
18 |
22 x 11 x 10 right Wheel & Tire with Bar Tread |
483942 |
- |
20 x 10 x 10 Turf Tire |
482474 |
- |
21 x 11 x 10 Tire with Bar Tread |
482484 |
- |
10 x 8.5 5-Bolt Wheel |
483420 |
- |
20 x 10 x 10 Wheel & Turf Tire |
483924 |
19 |
22 x 11 x 10 left Wheel & Tire |
483943 |
- |
20 x 10 x 10 Turf Tire Only |
482474 |
- |
21 x 11 x 10 Tire with Bar Tread |
482484 |
- |
10 x 8.5 5-Bolt Wheel |
483420 |
- |
20 x 10 x 10 Wheel & Turf Tire |
483924 |
20 |
Console with Decals for Liquid-Cooled Gas Models |
693105 |
21 |
96 Console Fill Panel |
721152 |
22 |
Battery Box without Draw Latch |
644163 |
23 |
Battery Box Lid without Latch |
644478 |
24 |
Battery Hold-Down Bracket |
754135 |
25 |
Battery Tray Pad |
427278 |
26 |
Mechanical Choke |
142230 |
27 |
1" (internal dimensions) Square Plastic Plug |
422065 |
28 |
right 700/900 Quick Disconnect Deck Mount |
643092 |
29 |
left 700/900 Quick Disconnect Deck Mount |
643093 |
30 |
Special Carriage Bolt |
247280 |
31 |
Deck Mount Bushing |
282575 |
32 |
Floating Deck Mount Bushing |
282576 |
33 |
Nylon Insert Nut |
253460 |
34 |
700/900 Adjustable Foot Platform Assembly
(includes items 35, 36, 54, & 55) |
604346 |
35 |
Foot Rest Tread |
420905 |
36 |
Nylon Bearing |
422615 |
37 |
700 Foot Platform Pivot Rod |
780673 |
38 |
Nylon Insert Nut |
253470 |
39 |
Rubber Bumper |
424052 |
40 |
Series 700 Foot Platform Extension |
603301 |
41 |
Foot Rest Extension Tread |
420904 |
42 |
Carriage Bolt |
247130 |
43 |
8 Gallon Gas Fuel Tank with Decal |
693235 |
44 |
Fuel Tube |
101837 |
45 |
Cap with Fuel Level |
141130 |
46 |
Fuel Line Hose |
821716 |
47 |
Spring Hose Clamp |
280261 |
48 |
Kubota Fuel Pre-filter |
101005 |
49 |
Hex Flange Whiz Bolt |
253192 |
50 |
Whiz Nut |
253043 |
51 |
G2 Trash Shield |
721383 |
52 |
Rubber Bumper |
424015 |
53 |
Compression Spring |
283312 |
54 |
Footrest Isolator Block |
424100 |
55 |
Hex Bolt |
243026 |
56 |
Truss Whiz Bolt |
253176 |
57 |
Cup Hole Plug |
422066 |
58 |
Cup Holder |
150225 |
59 |
Cap Screw |
259030 |
- |
Nut |
254436 |
60 |
Whiz Nut |
253035 |
61 |
Hex Whiz Bolt |
253175 |
62 |
Washer |
257020 |
63 |
Nylon Insert Nut |
253440 |
64 |
Hex Whiz Bolt |
253173 |
65 |
Whiz Nut |
253025 |
65 |
Brake Pin Reinforcement |
729230 |
67 |
Decal Set for 932G2 with Side Console |
604209 |
