Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

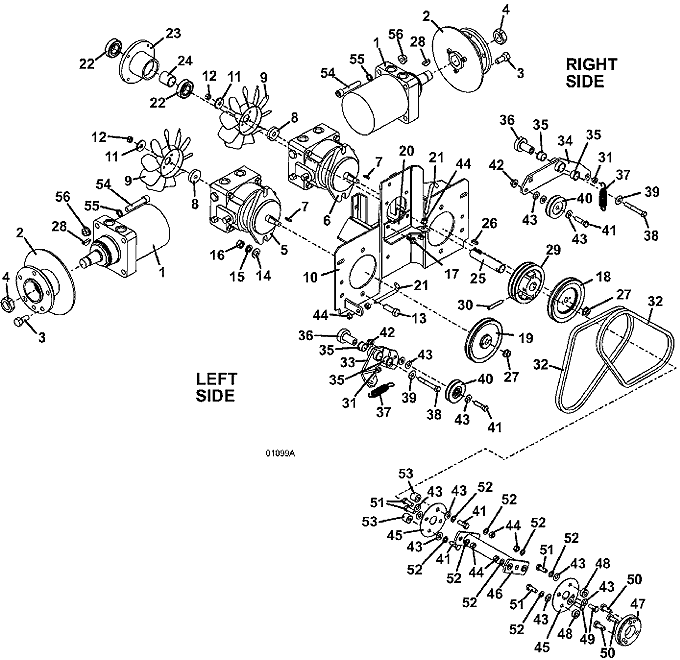

932G2 • Drive Assembly

2004

Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603604

2

Bolt-On Rotor Wheel Hub

604440

-

8.0 Brake Rotor

775192

-

Socket Head Screw

259592

3

Lug Bolt

248565

4

Nut

254522

5

Hydro Pump - left

391452

-

Seal

125165

-

Square Charge Cover Seal Ring

130020

6

Hydro Pump - right

391453

-

Seal

125165

-

Square Charge Cover Seal Ring

130020

7

Rectangle Key

281562

8

10A Fan Mount Hub

885123

9

CW 7” Nylon Fan

320857

10

900 Drive Mount

644630

11

Washer

774020

12

Nut

254452

13

Hex Bolt

243570

14

Washer

257062

15

Lock Washer

257432

16

Nut

254470

17

Hex Flange Whiz Bolt

253192

18

Sheave

415021

19

Sheave

415022

20

928 Spring Bracket

725028

21

Idler Adjustment J Bolt

730391

22

2 Metal Seal 25mm Ball Bearing

110081

23

Vac Fan Spindle Housing

320522

24

Drive Bearing Spacer

903650

25

700G2 Drive Shaft

882052

26

Square Key

281580

27

Flange Nut

253060

28

Woodruff Key

281860

29

Sheave

415036

30

Roll Pin

261061

31

Nylon Bearing

422520

32

Belt

381537

33

Idler Arm Assembly

824491

34

Idler Arm Assembly

824490

35

Oilite Bearing

121756

36

Pedestal Bearing

121650

37

Extension Spring with Swivel

283819

38

Hex Bolt

243360

39

Washer

257040

40

Idler

604449

41

Hex Bolt

243340

42

Whiz Nut

253043

43

Washer

257030

44

Nut

254450

45

Flex Coupling Disc

821530

46

Coupling Connector

644153

47

Coupling Adapter

885285

48

Coupling Spacer

902318

49

Hex Bolt

830040

50

M10 Socket Head Screw

270085

51

Hex Bolt

243330

52

Lock Washer

257412

53

G2 Drive Spacer

902328

54

Socket Head Screw

259640

55

Star Internal Washer

257430

56

Flange Spiral Lock Nut

253066
