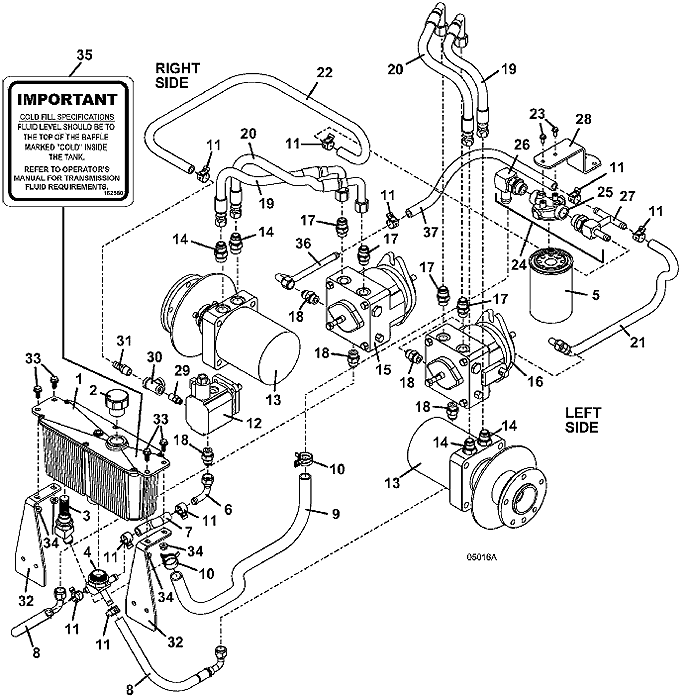

932G2 • Reservoir & Hose Assembly
2007
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
G2 Oil Tank Assembly with Strainer |
101692 |
2 |
Fill Cap |
100760 |
3 |
Fitting w/Diffuser |
366571 |
4 |
Triple Barb Fitting |
366570 |
5 |
Transmission Oil Filter |
100860 |
6 |
Steel O-Ring Boss Fitting |
363857 |
7 |
Hydraulic Hose |
821781 |
8 |
Hose Assembly |
424349 |
9 |
.75 Hydraulic Hose |
821804 |
10 |
Spring Hose Clamp |
280268 |
11 |
Spring Hose Clamp |
280266 |
12 |
Counter-clockwise Hydraulic Pump with Solenoid Valve |
290074 |
13 |
Wheel Motor with Hub |
603604 |
14 |
Fitting Adapter |
360069 |
- |
O-Ring |
126529 |
- |
O-Ring |
126537 |
15 |
right Hydro Pump |
391453 |
16 |
left Hydro Pump |
391452 |
17 |
Adapter Fitting |
360064 |
- |
O-Ring |
126529 |
- |
O-Ring |
126535 |
18 |
O-Ring Steel Boss Fitting |
363832 |
19 |
Hose Assembly |
424378 |
20 |
Hose Assembly |
424379 |
21 |
Hose Assembly |
424344 |
22 |
.5 Hydraulic Hose |
821806 |
23 |
Hex Whiz Bolt |
253173 |
24 |
G2 Filter Base Assembly with Hydraulic Fittings
(includes items 25 through 27) |
101021 |
25 |
Filter Base |
101027 |
26 |
12 Bead O-Ring Adapter |
360076 |
27 |
3 Bead O-Ring Adapter |
360075 |
28 |
928DS Filter Mount |
732614 |
29 |
O-Ring Adapter |
360040 |
30 |
Tee |
366810 |
31 |
Brass Hose Insert |
360259 |
32 |
Aluminum Oil Tank Mount -right |
755128 |
33 |
Hex Flange Whiz Bolt |
253192 |
34 |
Whiz Nut |
253035 |
35 |
Oil Specification Decal |
162580 |
36 |
Tube Assembly |
424602 |
37 |
Hydraulic Hose |
821799 |
