Genuine OEM Grasshopper® Mower Parts Diagrams

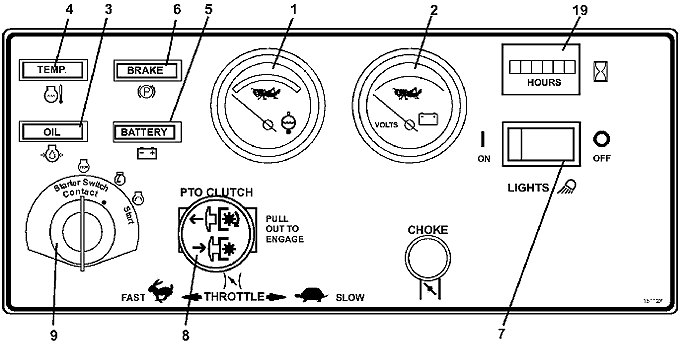

932G2 • Console
2008
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Zoned Electric Temperature Gauge |
141160 |
2 |
Voltmeter Gauge |
141200 |
3 |
Oil Indicator Light |
182327 |
4 |
Temperature Indicator Light |
182328 |
5 |
Battery Indicator Light |
182325 |
6 |
Brake Indicator Light |
182326 |
7 |
Rocker Switch |
184179 |
8 |
Push / Pull Switch |
183925 |
9 |
Kubota Sealed Key Switch |
183827 |
19 |
Snap-in Hour Meter |
141551 |
20 |
729/932 Console Pic Decal |
161127 |
