932G2 • Wiring & Lights

2009

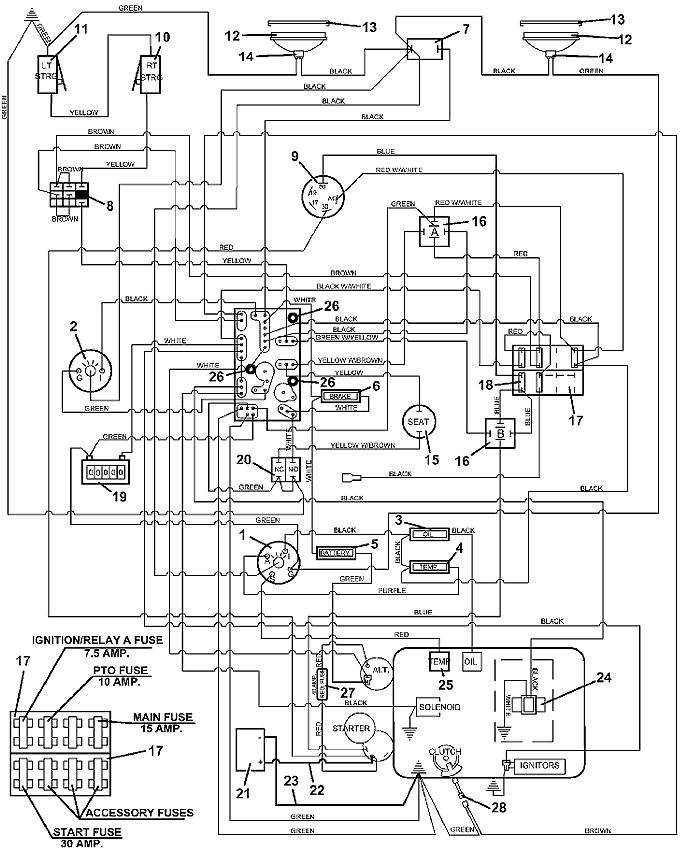

Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Zoned Electric Temperature Gauge

141160

2

Voltmeter Gauge

141200

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Rocker Switch

184179

8

Switch Push/Pull

183925

9

Switch Key Sealed - Kubota

183827

10

Lever Switch

183860

-

Steering Switch Mount - right

720160

11

Lever Switch

183860

-

Steering Switch Mount - left

720161

12

Halogen Flood Worklamp

182250

-

Halogen Light Bulb

182245

13

Snap Mount Worklamp Bezel

182251

14

900 Worklamp Harness

604895

15

Twist-In Seat Switch

183871

16

12V DC Relay

184272

16

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5-Way Female Connector

184926

17

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Fuse Clip

184472

18

30 amp Auto ATC Fuse

181470

-

15 amp Auto ATC Fuse

181465

-

10 amp Auto ATC Fuse

181462

-

7.5 amp Auto ATC Fuse

181460

19

Snap In Hour Meter

141551

20

Brake Interlock Switch

183894

21

12 Volt Side Post Wet Battery

180130

-

12 Volt Side Post Dry Battery

180131

22

14" Battery Cable - Red

180313

-

Alternator Terminal Red Boot

425215

-

Starter Terminal Boot

425219

-

Battery Terminal Boot

425223

23

20" Battery Cable - Black

180282

24

Electric Fuel Pump

101510

25

Temperature Sender

141222

26

PC Board Support Spacer

423690

27

Regulator In-Line Fuse Holder

604888

-

40 amp Auto ATC Fuse

181475

28

Pigtail Cable Assembly

388840

29

932 Wiring Assembly

604973

30

729/932 Console Picture Decal

161127

return to 932G2 index return to top of page
