Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

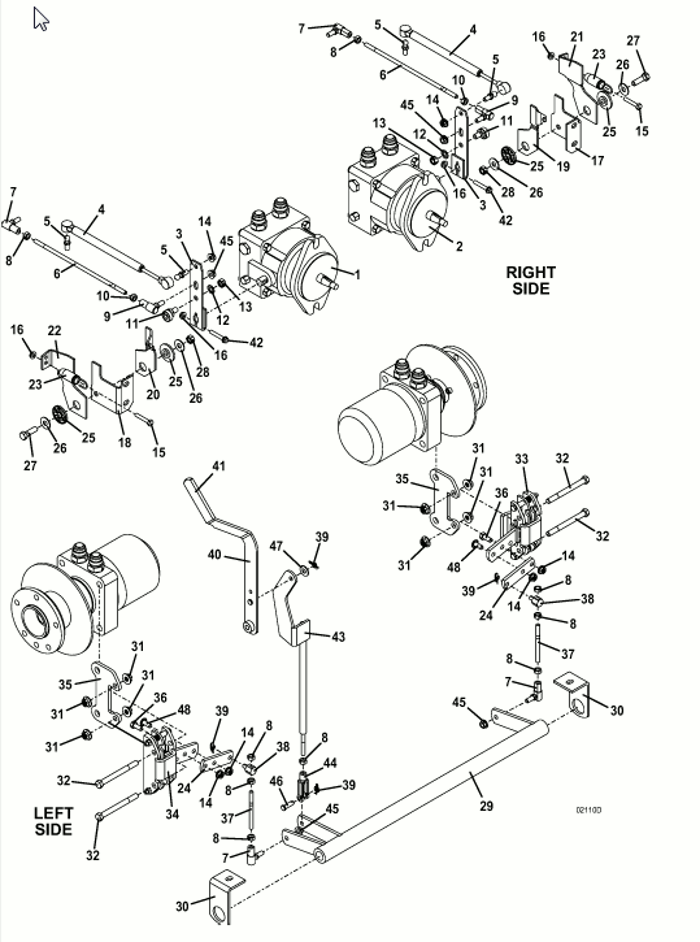

932G2 • Drive Linkage Assembly

2012

Drive Linkage Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hydro Pump - left

391452

2

Hydro Pump - right

391453

3

Pump Control Arm - right

725338

4

Damper

285031

5

Ball Stud

265680

6

Steering Linkage Pump Rod

780164

7

Ball Joint - Righthand Thread

265615

8

Nut

254441

9

Ball Joint - Leftthand Thread

265616

10

Nut

254444

11

Eccentric Roller Assembly

603726

12

Washer

257410

13

Nut .375-16

254450

14

Whiz Nut

253035

15

Hex Bolt

243035

16

Whiz Nut

253025

17

21L Neutral Return Mount - right

729225

18

21 Neutral Return Mount - left

729226

19

Neutral Return Arm -right

729138

20

Neutral Return Arm - left

729139

21

Neutral Return Front Arm - right

729136

22

Neutral Return Front Arm - left

729137

23

Extension Spring

283823

24

900 Series Brake Strap

782852

25

Neutral Return Pivot Bearing

822304

-

7.75 Rotor Brake Mount

776174

26

Washer

257040

27

Hex Bolt

243335

28

Lock Nut

253890

29

900DG2 Linkage Rod

644539

30

1.281 Brake Pivot Mount Bracket

732616

31

Whiz Nut

253044

32

Hex Bolt

243386

33

700, 900 M1 Clockwise Brake Assembly

481140

-

Brake Pad Kit

481160

-

M1/G2 Caliper Mount

644121

34

700, 900 M1 CounterClockwise Brake Assembly

481141

-

Brake Pad Kit

481160

-

M1/G2 Caliper Mount

644121

35

930D2/932G2 M1 Brake Mount

776123

36

Hex Bolt

243195

37

Brake Linkage Rod

780158

38

.312 Brake Linkage Pin

880926

39

Cotter Ring

260606

40

700/900 Brake Lever

644035

41

Handle Grip

422150

42

Hex Whiz Bolt

253182

43

Brake Linkage Arm

644036

44

Clevis Yoke

265537

45

Whiz Nut

253038

46

Clevis Pin

261284

47

Washer

257030

48

Truss Whiz Bolt

253190
