Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

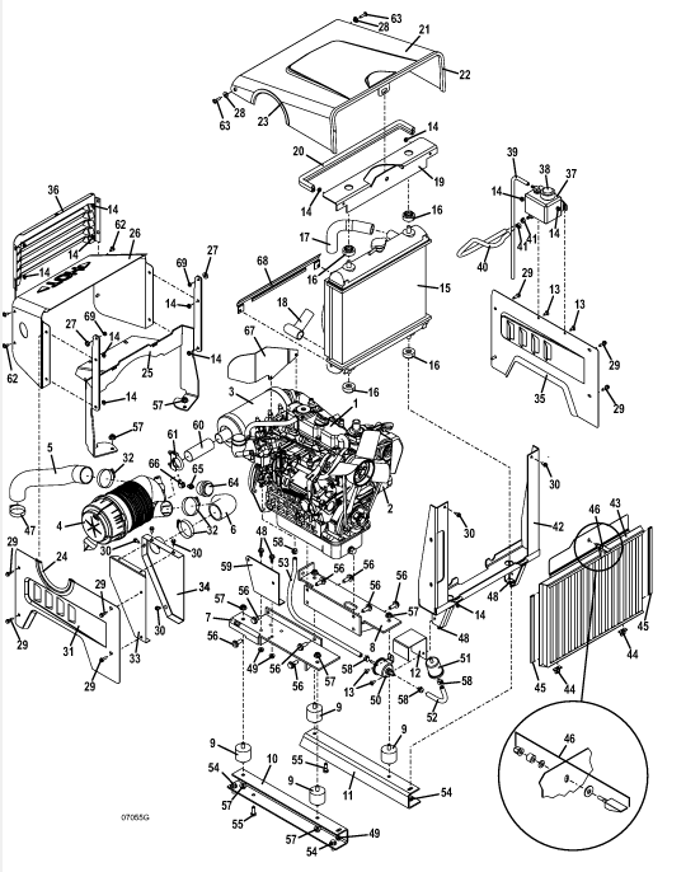

932G2 • Engine Assembly

2012

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Gas Engine

100172

2

Kubota Oil Filter

100800

3

Kubota Muffler

101236

-

Kubota Exhaust Flange

101040

4

Nelson 90 Degree Air Cleaner

100207

-

Clip for Air Cleaner Cover

100197

-

Air Cleaner Cover

100199

-

Dust Ejector

100202

-

Air Hood

100203

-

Outer HD Air Filter

100936

-

Inner HD Air Filter

100937

5

Breather/Carburetor Hose

424535

6

Breather Inlet Hose

424520

7

Engine Mount - RT 902D

644286

8

Engine Mount - LT 902D

644287

9

Vibration Isolator

424076

10

right Engine Mount Rail

725388

11

left Engine Mount Rail

725389

12

729 Fuel Pump Shield

751030

13

Truss Whiz Bolt

253176

14

Whiz Nut

253025

15

Kubota 902 Radiator

101612

16

Radiator Mount Isolator Bushing

101080

17

Upper Radiator Hose

101058

18

Lower Radiator Hose

101059

19

Radiator Channel Clamp

729327

20

Hood Bulb Seal

822518

21

725D/932 Engine Hood w/a

644438

22

Front Hood Trim

822639

23

Fender Edge Trim

822631

24

Air Cleaner Trim Seal

822513

25

932 Hood Support

644853

26

Rear Hood Box Panel

722942

27

Hood Hinge Spacer

901324

28

Step Bushing

422508

29

Hex Whiz Bolt

253175

30

Hex Whiz Bolt

253173

31

725DT6 right Side Hood

722920

32

Screw Type Hose Clamp

280305

33

Air Intake Box Mount

644066

34

Air Intake Box

644059

35

725DT6 LT Hood Side

762521

35

725DT6 Left Hood Side

645311

36

Rear Hood Grille

645270

37

Expansion Tank

421980

38

Tie

421990

39

Clear Vent Hose

821748

40

Hose

821749

41

Spring Hose Clamp

280260

42

Radiator Mount - Lower 902

644658

43

Grille w/Guard

644668

44

Rear Belt Shield Isolator

422090

45

Radiator Grille Trim

822636

46

Swell Latch Assembly

604805

47

Screw Type Hose Clamp

280303

48

Flange Whiz Bolt

253192

49

Whiz Nut

253035

50

Electric Fuel Pump

101510

51

Kubota Fuel PreFilter

101005

52

Fuel Hose

821731

53

Fuel Hose

821728

54

Flange Whiz Bolt

253203

55

Hex Bolt

243330

56

Hex Bolt

271121

57

Whiz Nut

253043

58

Spring Hose Clamp

280261

59

Coil Mount

754224

60

Exhaust Pipe

942418

61

Exhaust Clamp

101356

62

Bolt

253180

63

Bolt

253181

64

Filter Minder Gauge without Mount

141012

65

Filter O-Ring Fitting

363815

66

Street Ell Fitting

363828

67

Muffler Shield

723228

68

Fan Shield

721006

69

Nut w/Nylon Insert

253440
