Genuine OEM Grasshopper® Mower Parts Diagrams

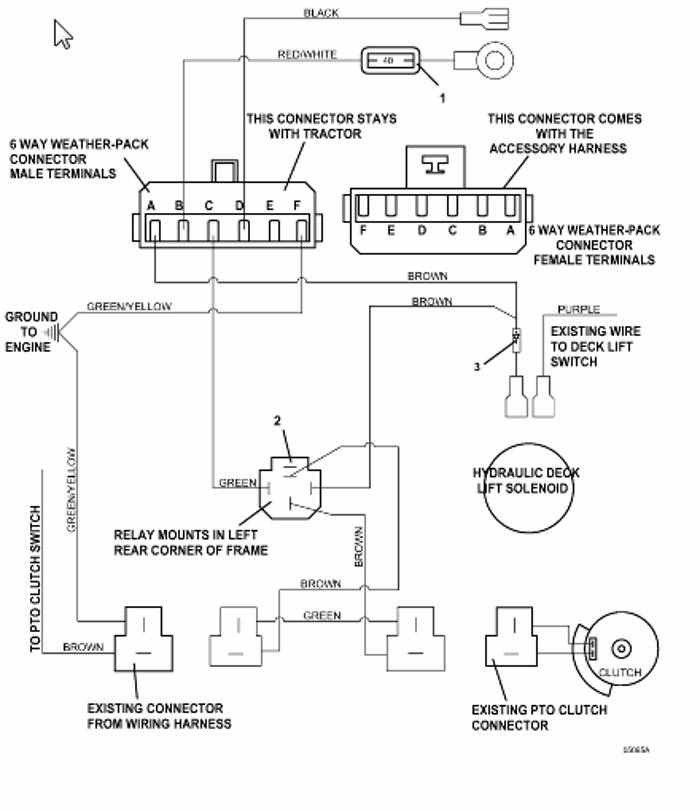

932G2 • Universal Harness
2012
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Auto ATC Fuse, 40 amp |
181475 |
2 |
12VDC Relay with Mount |
184271 |
2 |
Type 1 6mm Push-On |
184570 |
- |
.250 Fast-On Terminal |
184581 |
- |
5-Way Female Connector |
184926 |
3 |
800v Diode |
202105 |
4 |
Universal Wire Assembly - W/WP |
605848 |
