Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

504209 Discharge Control Kit for 500V/42PF

Parts Breakdown

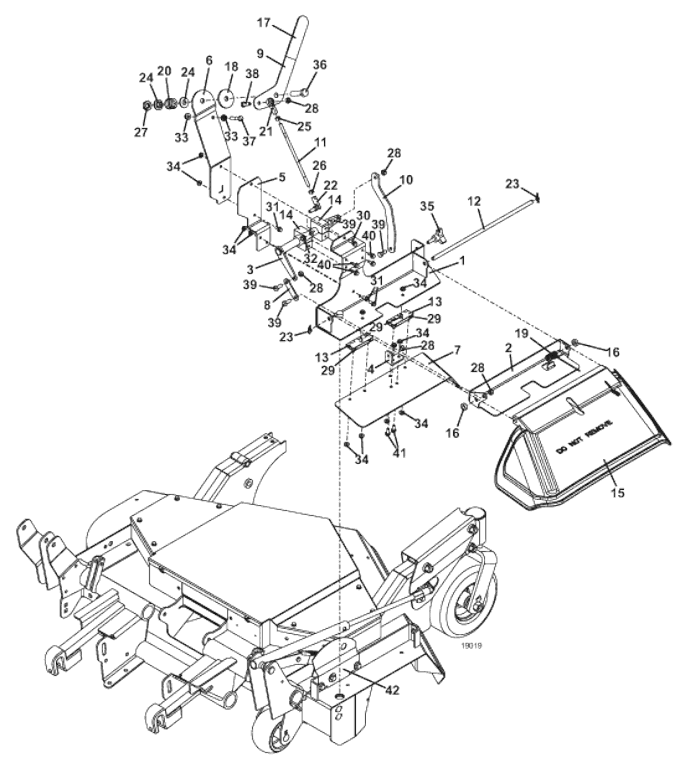

Grasshopper 504209 Discharge Control Kit for 500V 42 Inch PowerFold Decks Parts Breakdown Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Parts are being added to the Database, please call if you have a part that is not working yet.

Item #

Description

Part Number

1

500/42 Base Bracket

645119

2

Bracket

645112

3

Pivot

645652

4

Tab

725117

5

Bracket

729943

6

Lever Pivot

729944

7

500/42 Discharge Cover Plate

766106

8

Strap

774317

9

Discarge Control Lever

774359

10

Arm

775247

11

Steering Rod

780154

12

Pin

780651

13

Discharge Shield Hinge

820111

14

Pivot Bearing

822305

15

Shield

833543

16

Traction Kit Spacer

881095

17

Handle Grip

422155

18

Fiber Washer

421200

19

Torsion Spring

284406

20

Compression Spring

283381

21

Left Female Rod End

265651

22

Ball Joint Right Handed Thread

265615

23

Cotter Ring

260608

24

Washer

257067

25

Nut

254444

26

Nut

254441

27

Nylon Insert Nut

253470

28

Nylon Insert Nut

253450

29

Truss Whiz Bolt

253176

30

Hex Whiz Bolt

253175

31

Hex Whiz Bolt

253173

32

Whiz Nut

253038

33

Whiz Nut

253035

34

Whiz Nut

253025

35

3 Prong HD Deck Stud

252821

36

Hex Bolt

243580

37

Hex Bolt

243215

38

Hex Bolt

243205

39

Hex Bolt

243195

40

Hex Bolt

243016

41

Whiz Bolt

253172

42

Cutting Height Plate Decal

773142

-

33/34 Series Cutting Height Decal

162188
