700G2 • Hydraulic Lift Wiring
serial numbers 498737 and below

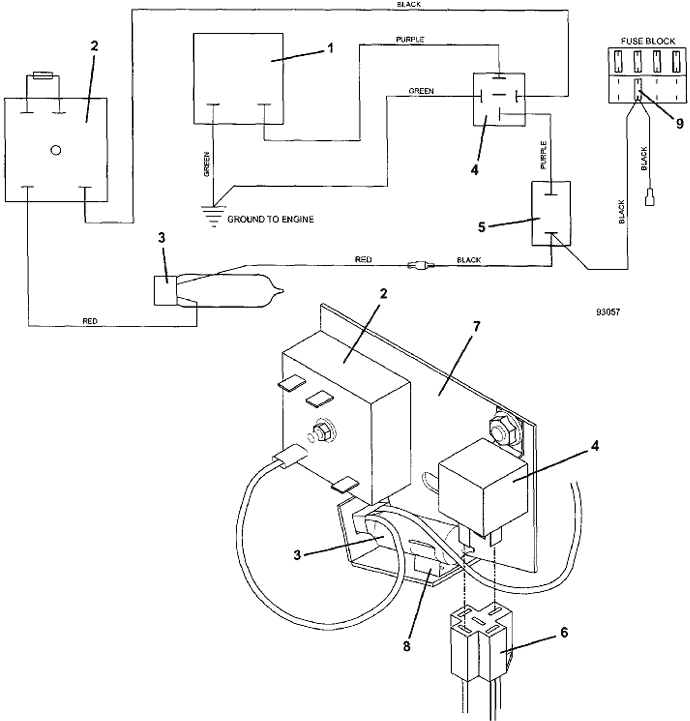

Hydraulic Lift Wiring

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hydraulic Valve Solenoid

144950

2

Deck Lift Timer Assembly

604815

3

Mercury Switch

183725

4

12 volt DC Relay with Mount

184271

-

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5 Way Female Connector

184926

5

Sealed Dome Switch

183940

-

Momentary Toggle

183954

6

5 Way Female Connector

184926

7

Tilt Switch Side Console Mount

722121

8

Switch Mounting Clip

183726

9

Auto ATC Fuse - 7.50

181460

10

Hydraulic Deck Lift Wire Group

603873
