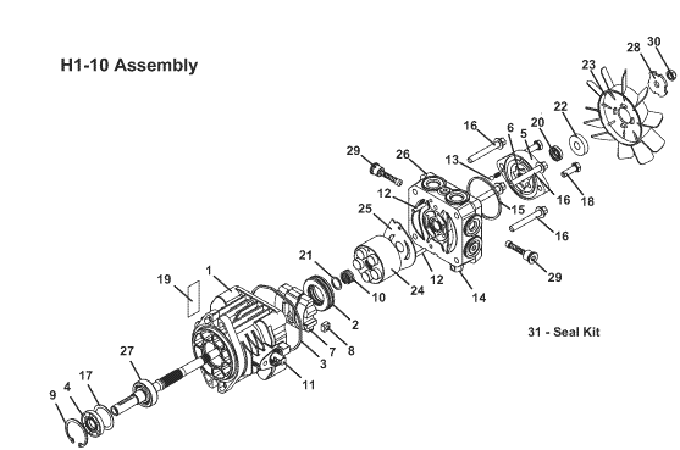

120 • Pump Breakdown

2006

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Housing Assembly

130455

2

Thrust Bearing

130413

3

Seal Ring

130457

4

Input Seal

125366

5

Charge Cover (No Fan)

130423

-

Charge Cover (With Fan)

130422

6

Gerotor Set

130425

7

Swashblock

130415

8

Control Block

130417

9

Input Seal Retaining Ring

130405

10

Spring

130473

11

Trunnion Arm

130419

-

Trunnion Seal

125359

-

Retaining Ring

130402

12

Dowel Pin

130459

13

Charge Relief Kit

130426

14

Bypass Valve

130448

-

Backup Ring

130517

-

O-Ring

130518

15

Charge Cover Seal Ring (No Fan)

130421

-

Chare Cover Seal Ring (With Fan)

130420

16

NOT AVAILABLE

000000

17

Washer

130407

18

NOT AVAILABLE

000000

19

NOT AVAILABLE

000000

20

Thru Shaft Seal

125162

21

Thrust Washer

130479

22

Fan Hub

130430

23

See Drive Assembly Page

24

Piston & Barrel Assembly

130452

25

Port Plate

130453

26

Left End Block Assembly

130437

-

Right End Block Assembly

130440

27

Shaft Assembly (No Fan)

130475

-

Thru Shaft Assembly (Fan)

130477

-

Input Bearing

130482

-

Bearing Retaining Ring (Wire)

130483

28

Fan Retainer Washer

130432

29

Check Valve Assembly

130443

-

O-Ring

130447

30

Nylon Insert Nut

253461

31

Seal Kit

130401
